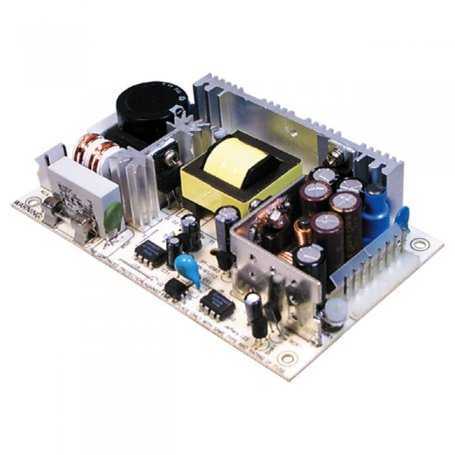

PT-6503 - Meanwell - Alimentatore Aperto 65W 5V - Ingresso 100-240 VAC
- 65W 3,3V 7000mA CH1 5V 10000mA CH2 12V 1200mA CH3
- IP20 Tensione Costante / CV
Scheda tecnica
- Tipo Regolazione Uscita
- Tensione Costante / CV
- Tensione Uscita VDC
- 5
- Tensione Uscita 3 VDC
- 12
- Tensione Uscita 2 VDC
- 5
- Tensione Ingresso VAC
- 90~264VAC
90~264VAC - Temperatura di Lavoro
- -10 °C / +60 °C
- Potenza W
- 65
- PFC
- No
- Nr. Tensioni Uscita
- 3
- Grado Protezione IP
- IP20
- Garanzia
- 2 Anni
- Formato Meccanico di Montaggio
- Open Frame
- Efficienza
- 72%
- Dimensioni
- 127x76x42mm
- Corrente Uscita mA
- 7000
- Corrente Uscita A
- 7
- Corrente Uscita 3 mA
- 1200
- Corrente uscita 3 A
- 1,2
- Corrente Uscita 2 mA
- 10000
- Corrente Uscita 2 A
- 10
- Connessione Uscita
- Connettore
- Certificazioni
- CE, UL
- Applicazioni
- Automazione Industriale, ITE
- Tensione Ingresso VAC (Nominale)
- 110, 220
- Famiglia Prodotto
- PT
- LTT
- 3
- MKP
- YES
- TK-CODE
- 62/0. [232.15.NO.]/LTT-3
- Prezzo listino
- 34.7
