P.2835.120.2480 Strisce Led SMD 2835 - 120 led/m - 10560 Lumen 24V - CRI80 Power-Supply Strisce di LED
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

SMD 2835 LED Strips - 120 leds/m - 10560 Lumen 24V - CRI80

€5.53 3000K Warm White e IP67 e 24V
€7.42 3000K Warm White e IP20 e 24V
€11.13 3000K Warm White e IP68 e 24V
€7.42 3000K Warm White e IP65 e 24V
€5.53 4000K Natural White e IP67 e 24V
€7.42 4000K Natural White e IP20 e 24V
€11.13 4000K Natural White e IP68 e 24V
€7.42 4000K Natural White e IP65 e 24V
€5.53 6500K Cool White e IP67 e 24V
€11.13 6500K Cool White e IP68 e 24V
€7.42 6500K Cool White e IP20 e 24V
€7.42 6500K Cool White e IP65 e 24V

€7.42 Tax excluded

€7.42 Tax excluded

block Non disponibile - contattaci
1-4 5-9 10-19 20 + temp colore Grado IP Tension d'Entrée
€7.42 €7.27 €7.12 €6.97 3000K Warm White IP20 24V
€7.42 €7.27 €7.12 €6.97 3000K Warm White IP65 24V
€5.53 €5.42 €5.31 €5.20 3000K Warm White IP67 24V
€11.13 €10.91 €10.68 €10.46 3000K Warm White IP68 24V
€7.42 €7.27 €7.12 €6.97 4000K Natural White IP20 24V
€7.42 €7.27 €7.12 €6.97 4000K Natural White IP65 24V
€5.53 €5.42 €5.31 €5.20 4000K Natural White IP67 24V
€11.13 €10.91 €10.68 €10.46 4000K Natural White IP68 24V
€7.42 €7.27 €7.12 €6.97 6500K Cool White IP20 24V
€7.42 €7.27 €7.12 €6.97 6500K Cool White IP65 24V
€5.53 €5.42 €5.31 €5.20 6500K Cool White IP67 24V
€11.13 €10.91 €10.68 €10.46 6500K Cool White IP68 24V
Description

Code: P.2835.120.2480

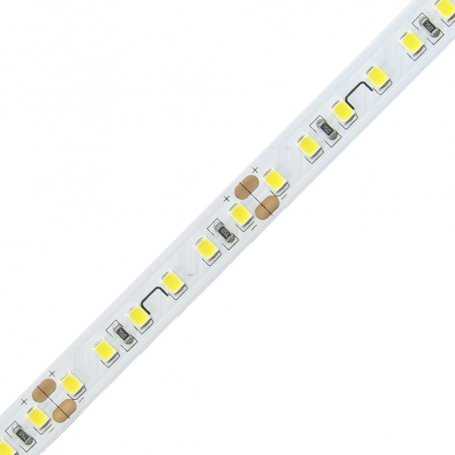

Flexible strip of SMD type 2835 led - length 5 meters.

Equipped with 3M adhesive tape for fixing.

Available with IP20 / IP65 / IP67 / IP68 protection degree

Available CRI+80Ra | CRI+90Ra | CRI+95Ra

Technical Specifications:

Dimensions  5000x12mm
Power consumption W   144W / 28.8w/m
Voltage V  24V
Operating Temp. -20°C / +45°C
Humidity     40% ~ 70% RH
MTBF        25,000 hours
Product Code   CCT LED TYPE S. D. LEDS mt W/m Power W Lumen lm/m Eff. LM/W PCB width Cut Length CRI CRI +90 CRI +95
P.2835.120.2480-WW22 4.5 2200K 2835 S 120 19.2 96 1382 72 10mm 5cm 80 Yes/opt. Yes/opt.
P.2835.120.2480-WW24 4.5 2400K 2835 S 120 19.2 96 1440 75 10mm 5cm 80 Yes/opt. Yes/opt.
P.2835.120.2480-WW27 4.5 2700K 2835 S 120 19.2 96 1728 90 10mm 5cm 80 Yes/opt. Yes/opt.
P.2835.120.2480-WW30 4.5 3000K 2835 S 120 19.2 96 1824 95 10mm 5cm 80 Yes/opt. Yes/opt.
P.2835.120.2480-NW40 4.5 4000K 2835 S 120 19.2 96 1920 100 10mm 5cm 80 Yes/opt. Yes/opt.
P.2835.120.2480-W55 4.5 5500K 2835 S 120 19.2 96 1920 100 10mm 5cm 80 Yes/opt. Yes/opt.
P.2835.120.2480-W65 4.5 6500K 2835 S 120 19.2 96 2112 110 10mm 5cm 80 Yes/opt. Yes/opt.
Attachments

Datasheet 564.2835.120.2480

DATASHEET

file_download Download (188.97KB)

Data sheet
ArredoLED.it
P.2835.120.2480-WW30-WG
New
0655994247025
LED Type
2835 SMD
Power Supply Type
Constant Voltage / CV
Input Voltage Volt
24
Available Temperatures
from 2200K to 6500K
Operating Temperature
-4°F / 113°F
Rating
4.5
Power W
144
Power / m
28.8 W/m
Number of LEDs
120 LEDs/m
Cutting Length
5 cm
Lumen / m
2880
LED Line
Single
PCB Width
12mm
Luminous Flux
10560 Lumen Max
Efficiency LM/W
110 lm/w Max
IRC (Italian Red Cross)
Ra+80
Other Optional CRI
Ra+90 / Ra+95
