The product image may slightly differ as it is representative of the family and not the model.

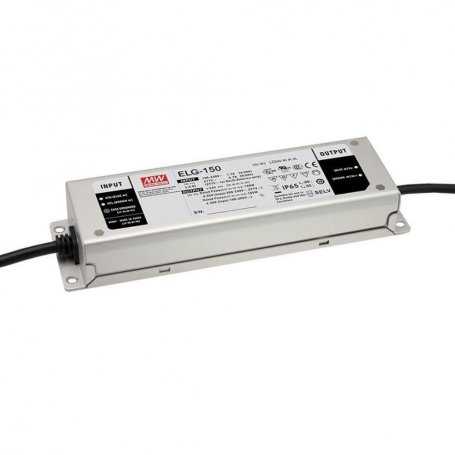

ELG-150 Meanwell LED Power Supply 150W Constant Voltage CV Constant Current CC
| 0-0 | 1-4 | 5-9 | 10-19 | 20 + | Modello | |
|---|---|---|---|---|---|---|
| -- | €40.60 | €39.79 | €38.98 | €38.16 | ELG-150-24 | |
| -- | €46.76 | €45.82 | €44.89 | €43.95 | ELG-150-36 | |
| -- | €46.76 | €45.82 | €44.89 | €43.95 | ELG-150-42 | |
| -- | €46.76 | €45.82 | €44.89 | €43.95 | ELG-150-48 | |
| -- | €46.76 | €45.82 | €44.89 | €43.95 | ELG-150-54 | |
| -- | €46.76 | €45.82 | €44.89 | €43.95 | ELG-150-12 | |
| -- | €49.07 | €48.09 | €47.11 | €46.13 | ELG-150-12B | |
| -- | €40.67 | €39.86 | €39.04 | €38.23 | ELG-150-24B | |
| -- | €46.76 | €45.82 | €44.89 | €43.95 | ELG-150-12A | |
| -- | €40.60 | €39.79 | €38.98 | €38.16 | ELG-150-24A | |
| -- | €46.76 | €45.82 | €44.89 | €43.95 | ELG-150-36A | |
| -- | €46.76 | €45.82 | €44.89 | €43.95 | ELG-150-42A | |
| -- | €46.76 | €45.82 | €44.89 | €43.95 | ELG-150-48A | |
| -- | €46.76 | €45.82 | €44.89 | €43.95 | ELG-150-54A | |
| -- | €49.07 | €48.09 | €47.11 | €46.13 | ELG-150-36B | |
| -- | €49.07 | €48.09 | €47.11 | €46.13 | ELG-150-42B | |
| -- | €40.95 | €40.13 | €39.31 | €38.49 | ELG-150-48B | |
| -- | €49.07 | €48.09 | €47.11 | €46.13 | ELG-150-54B | |
| -- | €55.16 | €54.06 | €52.95 | €51.85 | ELG-150-12D2 | |
| -- | €55.16 | €54.06 | €52.95 | €51.85 | The text "ELG-150-24D2" is a model or product number and doesn't require translation. It remains the same in English. | |
| -- | €55.16 | €54.06 | €52.95 | €51.85 | ELG-150-36D2 | |
| -- | €55.16 | €54.06 | €52.95 | €51.85 | ELG-150-42D2 | |
| -- | €55.16 | €54.06 | €52.95 | €51.85 | ELG-150-48D2 | |
| -- | €55.16 | €54.06 | €52.95 | €51.85 | ELG-150-54D2 | |
| -- | €54.18 | €53.10 | €52.01 | €50.93 | ELG-150-12DA | |
| -- | €54.18 | €53.10 | €52.01 | €50.93 | ELG-150-24DA | |
| -- | €54.18 | €53.10 | €52.01 | €50.93 | ELG-150-36DA | |
| -- | €54.18 | €53.10 | €52.01 | €50.93 | ELG-150-42DA | |
| -- | €54.18 | €53.10 | €52.01 | €50.93 | ELG-150-48DA | |
| -- | €54.18 | €53.10 | €52.01 | €50.93 | ELG-150-54DA | |
| -- | €49.07 | €48.09 | €47.11 | €46.13 | ELG-150-12BE | |
| -- | €49.07 | €48.09 | €47.11 | €46.13 | ELG-150-24BE | |
| -- | €49.07 | €48.09 | €47.11 | €46.13 | ELG-150-36BE | |
| -- | €49.07 | €48.09 | €47.11 | €46.13 | ELG-150-42BE | |
| -- | €49.07 | €48.09 | €47.11 | €46.13 | ELG-150-48BE | |
| -- | €49.07 | €48.09 | €47.11 | €46.13 | ELG-150-54BE | |
| -- | €37.73 | €36.98 | €36.22 | €35.47 | ELG-150-12-3Y | |
| -- | €46.76 | €45.82 | €44.89 | €43.95 | ELG-150-12A-3Y | |
| -- | €43.12 | €42.26 | €41.40 | €40.53 | ELG-150-12B-3Y | |
| -- | €37.59 | €36.84 | €36.09 | €35.33 | ELG-150-24-3Y | |
| -- | €39.34 | €38.55 | €37.77 | €36.98 | ELG-150-24A-3Y | |
| -- | €40.95 | €40.13 | €39.31 | €38.49 | ELG-150-24B-3Y | |
| -- | €45.92 | €45.00 | €44.08 | €43.16 | ELG-150-24DA-3Y | |
| -- | €49.07 | €48.09 | €47.11 | €46.13 | The term "ELG-150-48B-3Y" is a specific product model or code and does not require translation as it would remain the same in al | |
| -- | €42.28 | €41.43 | €40.59 | €39.74 | ELG-150-54A-3Y | |
| €39.27 | €39.27 | €38.48 | €37.70 | €36.91 | ELG-150-48-3Y | |
| €40.88 | €40.88 | €40.06 | €39.24 | €38.43 | ELG-150-48A-3Y | |
| €50.54 | €50.54 | €49.53 | €48.52 | €47.51 | ELG-150-48ADA-3Y | |
| €44.52 | €44.52 | €43.63 | €42.74 | €41.85 | ELG-150-12DA-3Y | |
| €45.64 | €45.64 | €44.73 | €43.81 | €42.90 | ELG-150-48DA-3Y |
Description
Power supplies for Led Mean Well ELG-150 series Dimmable, power 150Watt, output currents 2.5A, 2.8A, 3.13A, 3.2A, 3.57A, 4.17A, 5.6A, 6.25A, 8A, 10A. Output voltages 12V, 24V, 36V, 42V, 48V,54V.
The seriesELG-150It has a dual mode of constant current and constant voltage output, has an input voltage range of 100-305 VAC and offers models with voltages ranging from 12V to 54V.
The design of the metal case and the IP67 / IP65 protection level allows this series to adapt to both indoor and outdoor applications.
The seriesELG-150It is equipped with various function options, such as dimming methodologies, in order to provide optimal design flexibility for the LED lighting system.
Features:
- MeanWell LED Power Supply
- Output in Constant Voltage and Constant Current DC mode
- Design of the metal case with functional grounding
- IP67 / IP65 protection degree for indoor or outdoor installations
- Typical duration>50000 hours
- Active PFC function built-in
- No load / Energy consumption in standby
- Function options: adjustable output via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming; DALI; Auxiliary DC output
- Protection from: short circuit, overvoltage, overcurrent and overheating
- Dimensions: 219x63x35.5mm
- Warranty: 5 years
Applications:
- LED street lighting
- LED Lighting
Our vote:
- Reliability
- Price
- Characteristics
- [[voto1]You didn't provide any text to translate. Please try again.
- [[voto2]You didn't provide any text to translate. Please try again.
- [[voto3]You didn't provide any text to translate. Please try again.
Main technical specifications
| MODEL | ELG-150-12 | ELG-150-24 | ELG-150-36 | ELG-150-42 | ELG-150-48 | ELG-150-54 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type of exit | Constant Voltage/CV Constant Current / CC | ||||||||||||||||||||||||||||
| Output voltage | 12V | 24V | 36V | 42V | 48V | 54V | |||||||||||||||||||||||
| Nominal Output Current | 10A | 6.25A | 4.17A | 3.57A | 3.13A | 2.8A | |||||||||||||||||||||||
| Power | 120W | 150W | 150.1W | 150W | 150.2W | 151.2W | |||||||||||||||||||||||
| Efficiency | 88% | 89% | 90% | 90% | 90% | 91% | |||||||||||||||||||||||
| Input voltage range | 100 ~ 305VAC | ||||||||||||||||||||||||||||
| Vacuum Type | I Stare IP67 | ||||||||||||||||||||||||||||
| Type A | I am adjustable through integrated potentiometerIP65 | ||||||||||||||||||||||||||||
| Type B | 3 in 1 dimming function (1-10 VDC signal and resistance, 10V PWM)IP67 | ||||||||||||||||||||||||||||
| Type DA | DALI control systemIP67 | ||||||||||||||||||||||||||||
| Right Type | Smart timer adjustment function built in upon requestIP67 | ||||||||||||||||||||||||||||
| Type D2 | Built-in smart timer adjustment function and programmable functionIP67 | ||||||||||||||||||||||||||||
| Type BE | 3 in 1 adjustment function and auxiliary DC outputIP67 | ||||||||||||||||||||||||||||
| Dimmable | YES | ||||||||||||||||||||||||||||
| Working temperature | -40 ~ +90 °C | ||||||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||||||
| Dimensions | 219x63x35.5mm | ||||||||||||||||||||||||||||
| Protection Degree | IP67 / IP65 | ||||||||||||||||||||||||||||
| Certifications | CE, CB, EAC | ||||||||||||||||||||||||||||
| For purchases and sampling | CONTACT US | ||||||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
Attachments
Data sheet
- Dimming LED
- 0/10V
Dali
PWM
Potentiometer
Resistor (Ohm)
Timer Dimming - Led Dimming (interface)
- 0/10V
Dali
PWM
Potentiometer - Output Regulation Type
- Constant Current / CC
Constant Voltage / CV - Output Voltage VDC
- 12
24
36
42
48
54 - Input Voltage VAC
- 100~305VAC
100~305VAC - Operating Temperature
- -40°C / +90°C
- Rating
- 453
- Power W
- 150
- PFC
- Yes
- IP Protection Grade
- IP65
IP67 - Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Metal Container
- Efficiency
- 91%
- Dimensions
- 219x63x35.5mm
- Output Current mA
- 2500
2800
3130
3200
3570
4170
5600
6250
8000
10000 - Output Current A
- 2.5
2.8
3.2
3.13
3.57
4.17
5.6
6.25
8
10 - Input Connector
- Cable
- Output Connection
- Wired
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Product Family
- Could you please provide more context or clarify what "ELG" refers to? It might help me give you a more accurate translation or information.
