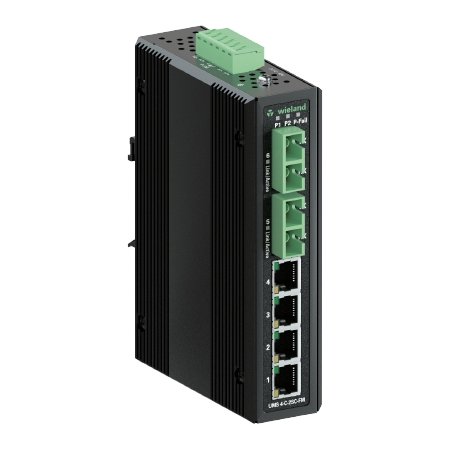

WIENET UMS 4-C-2SC-FM - Industrial Ethernet Switch - 4 ports
The WIENET UMS 4-C-2SC-FM is an unmanaged Ethernet switch designed for industrial environments that require mixed copper/fiber optic connectivity, reliability, and quick installation on a DIN rail. The device features 4 RJ45 Fast Ethernet ports (10/100 Mbps) and 2 SC fiber ports, making it ideal for hybrid networks that require stable transmission even over long distances.
Constructed with a durable metal housing and certified with IP30 protection rating, it ensures performance in environments with temperatures ranging from -10 °C to +60 °C. The switch supports redundant power supply (12–48 V DC) and has a maximum consumption of less than 6.5 W, ensuring operational reliability and low energy consumption.
Compliant with RoHS and REACH-SVHC standards, this device is designed for professional installations that require quality, durability, and ease of use. The advanced diagnostic LEDs allow real-time monitoring of power, faults, and network activity.
Main Advantages:
4 RJ45 ports + 2 SC fiber ports
DIN rail installation
Wide DC voltage range (12–48 V)
Support for redundant power supply
Extended operating temperature (-10 °C to +60 °C)
Diagnostic LEDs for PWR1, PWR2, P-Fail, and Link/Activity
Sturdy metal housing (IP30)
Compliant with RoHS and REACH
Feature Value Product Code 83.040.1252.0 EAN 4049088600951 Device Type Unmanaged Ethernet Switch Mounting DIN rail Protection Rating IP30 Housing Material Metal Supported Ethernet 10/100 Mbps Number of RJ45 10/100 Mbps Ports 4 Number of SC Fiber 100 Mbps Ports 2 Number of ST Fiber 100 Mbps Ports 0 Power over Ethernet (PoE) No Gigabit Ethernet / 10G No Diagnostic LEDs PWR1, PWR2, P-Fail, LNK/ACT Power Type DC (direct current) Operating Voltage 12 – 48 V DC Redundant Power Supply Yes (2 inputs) Max Input Current 1.5 A Maximum Consumption Operating Temperature -10 °C – 60 °C Storage Temperature -40 °C – 85 °C Operating Relative Humidity 5% – 95% Electrical Connection Type Screw connection Supported Cable Section 0.25 mm² – 2.5 mm² (AWG26–AWG12) Stripping Length 8 mm Dimensions (W x H x D) 36.6 x 140 x 95 mm Weight 700 g RoHS / REACH Compliance Compliant ECLASS/ETIM Classifications ECLASS 11, ETIM 9.0 EC000734, etc.
- Output Voltage VDC
- Operating Temperature
- -10°C / +60°C
- Number of Ports
- 4
- IP Protection Grade
- IP30
- Mechanical Mounting Format
- Din Rail
- Dimensions
- Certifications
- It seems like "TUV" is not a word in Italian, and it does not provide any context to translate. Could you please provide more context or check if there might be a typo?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UKCA
UL - Porte PoE (Power over Ethernet)
- Fast Ethernet (100 Mbps)
