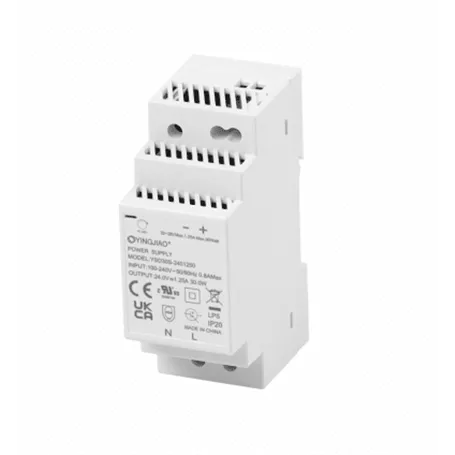

The product image may slightly differ as it is representative of the family and not the model.
YSD30S Yingjiao - DIN rail power supply 30W - Voltages 5V, 12V, 15V, 24V, 48V
Description
This series of Yingjiao power supplies is designed with an ultra-thin plastic case and for a wide range of AC input from 90V AC to 264V AC. The series is class II isolation, thus achieving high efficiency and low power consumption at idle. The models provide an adjustable DC output voltage and have a wide operating temperature range. The excellent performance is perfect for automation, home and industrial control systems, etc.
Main features of the 30W DIN rail power supply:
- Universal AC input range
- Class II Isolation
- Class 2/ Pass LPS
- Overvoltage category III
- Adjustable DC output voltage
- Installation on DIN rail TS-35/7.5 or 15
- 100% full load burn-in test
- 3-year warranty
Applications Yingjiao YSD30S:
- Home automation
- Building automation
- Power supply for video cameras
- Industrial automation
- Electro mechanical automation
- Control panels for elevators
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | YSD30S-0503000 | YSD30S-1202000 | YSD30S-1502000 | YSD30S-2401500 | YSD30S-4800630 |
|---|---|---|---|---|---|
| Output voltage | 5V | 12V | 15V | 24V | 48V |
| Nominal output current | 3A | 2A | 2A | 1.5A | 0.63A |
| Power (Nominal) | 15 Watt | 24 Watt | 30 Watt | 36 Watt | 30 Watt |
| Dimmable | NO | ||||
| Max Efficiency | 82% | 88% | 89% | 89% | 90% |
| Input Voltage VAC | 90-264VAC | ||||
| PFC | NO | ||||
| Dimensions | 35 x 90 x 58 mm | ||||
See also:
Download the Din Rail power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 5
12
15
24
48 - Input Voltage VAC
- 90 ~ 264VAC
90~264VAC - Operating Temperature
- -4°F / +158°F
- Rating
- 453
- Power W
- 30
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 82%
88%
89%
90% - Dimensions
- 18x90x58mm
- Output Current mA
- 630
1500
2000
3000 - Output Current A
- 0.63
1.5
2
3 - Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 2
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220
