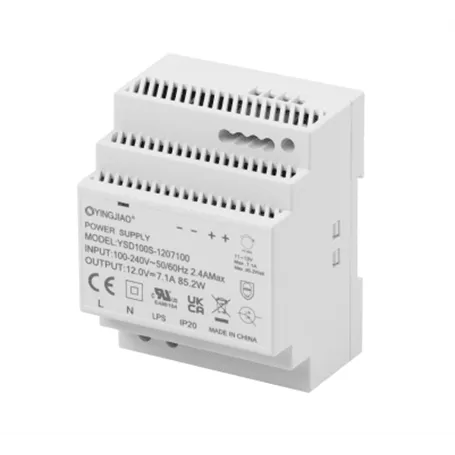

YSD100S Yingjiao - DIN rail power supply 100W - Voltages 12V, 15V, 24V, 48V
Description
This series of Yingjiao power supplies is designed with an ultra-thin plastic case and for a wide range of AC inputs from 90V AC to 264V AC. The series is of class II insulation, thus achieving high efficiency and low power consumption at idle. The models provide an adjustable DC output voltage and have a wide operating temperature range. Excellent performance makes them perfect for automation, home and industrial control systems, etc.
Main features of the 100W DIN rail power supply:
- Universal AC input range
- Class II isolation
- Class 2/ LPS Pass
- Category III overvoltages
- Adjustable DC output voltage
- Installation on TS-35/7.5 or 15 DIN rail
- 100% full load burn-in test
- 3-year warranty
Applications Yingjiao YSD100S:
- Home automation
- Building automation
- Power supply for cameras
- Industrial automation
- Electromechanical automation
- Control panels for elevators
Our vote:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | YSD100S-1207100 | YSD100S-1506130 | YSD100S-1506500 | YSD100S-2403830 | YSD100S-2404170 | YSD100S-4801920 | YSD100S-4802080 |
|---|---|---|---|---|---|---|---|
| Output voltage | 12V | 15V | 15V | 24V | 24V | 48V | 48V |
| Nominal output current | 7.1A | 6.13A | 6.5A | 3.83A | 4.17A | 1.92A | 2.08A |
| Power (Nominal) | 85.2 Watt | 92 Watt | 97.5 Watt | 92 Watt | 100 Watt | 92.2W | 100W |
| Dimmable | NO | ||||||
| Max Efficiency | 88% | 89% | 89% | 90% | 90% | 90% | 90% |
| Input voltage VAC | 90-264VAC | ||||||
| PFC | NO | ||||||
| Dimensions | 90x70.2x58.4 mm | ||||||
