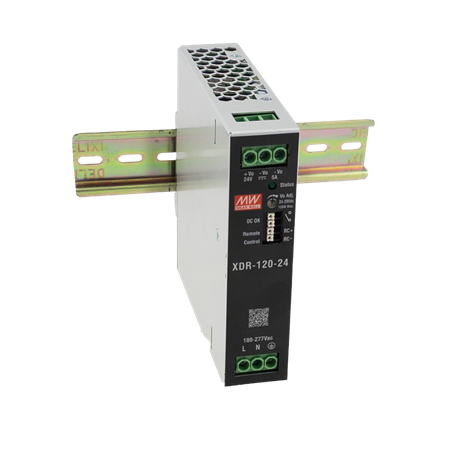

The product image may slightly differ as it is representative of the family and not the model.

NewNon disponibile - contattaci

XDR-120-36 – Alimentatore DIN Rail 36V 3.33A 120W – Ultra Slim – Mean Well

€0.00 Standard - Morsettiera a vite
€0.00 LA - Leva di azionamento rapido
€0.00 PI - Innesto rapido - Push In

€0.00 Tax excluded

€0.00 Tax excluded

€0.00 Senza tasse €0.00 Con tasse
Prezzo su richiesta
1-4 5-9 10-19 20 + Conector de Salida
€0.00 €0.00 €0.00 €0.00 Standard - Morsettiera a vite
€0.00 €0.00 €0.00 €0.00 LA - Leva di azionamento rapido
€0.00 €0.00 €0.00 €0.00 PI - Innesto rapido - Push In
Description

  • 120W AC/DC power supply with a constant voltage output of 36V and a maximum current of 3.33A.

  • Ultra-slim design with a width of only 30 mm, ideal for DIN rail mounting.

  • Wide input voltage range (85–264VAC) and high efficiency up to 89%.

  • Extended operating temperature from -40°C to +70°C, suitable for industrial environments.

  • Equipped with built-in protections and compliance with international standards.

Product Description

  • Output Voltage: 36V DC

  • Output Current: 3.33A

  • Nominal Power: 120W

  • Input Voltage: 85–264VAC

  • Efficiency: Up to 89%

  • Operating Temperature: -40°C ~ +70°C

  • Mounting: DIN Rail TS35/7.5 or TS35/15

  • Dimensions: 30 × 125.2 × 116 mm

  • Output Connection: Screw terminals

  • Certifications: CE, UKCA, CB, TUV, UL62368-1, EN62368-1, EAC, EMC

  • Applications: Industrial automation, electrical panels, motor control, PLC

  • Warranty: 3 years

Terminal Type Options:

  • Blank (Standard): Conventional Screw Terminal.
  • LA Type: Tool-free Lever Actuated terminal block.
  • PI Type: Push-In spring terminal block.
Attachments

XDR-120 Datasheet

file_download Download (894.21KB)

Data sheet
Mean Well
XDR-120-36-Standard - Morsettiera a vite
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
36
Input Voltage VAC
85~264VAC
85~264VAC
Operating Temperature
-40°C / +85°C
Power W
120
PFC
Yes
Warranty
3 Years
Mechanical Mounting Format
Din Rail
Dimensions
Constant Voltage / CV
Output Current mA
3330
Output Connection
At Speed
Certifications
EN62368
It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
It seems like "TUV" is not a word in Italian, and it does not provide any context to translate. Could you please provide more context or check if there might be a typo?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UKCA
UL
Applications
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Input Voltage VAC (Nominal)
Constant Voltage / CV
Product Family
Constant Voltage / CV
