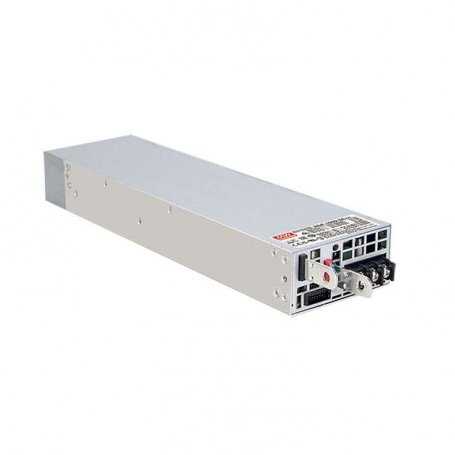

The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci
NSP-1600 MeanWell Power Supply 1600W Voltages 12V 24V 36V 48V
Description
Available models: NSP-1600-12, NSP-1600-24, NSP-1600-36, NSP-1600-48
TheNSP-1600 It is a series of boxed AC/DC single output power supplies. 1600W with a 1U low profile and a power density equal to 20W/inch. The entire series operates between the 90-264VAC in input and offers models to 12V, 24V, 36V, 48V. Each model is cooled by a thermostatically controlled fan. In addition, the NSP-1600 series offers a range of integrated options such as programming, remote ON-OFF ignition, auxiliary power supply, etc.
Features
- Universal AC input
- Active PFC function incorporated
- High efficiency up to 92%
- Forced air cooling through the integrated DC fan
- Programmable output voltage
- Integrated ON-OFF controls / remote sense / auxiliary power / DC OK signal
- Protections: short circuit, overload, overvoltage, overtemperature
- 5 years warranty
- Design according to SEMI F47
Applications:
- Factory or automation control devices
- Industrial applications
- Laser machines
- Tests and measurements
Our vote:
- Reliability
- Price
- Features
-
- [[voto1]There is no text provided to translate. Please provide the text you want translated.
- [[voto2]There is no text provided to translate. Please provide the text you want translated.
- [[voto3]There is no text provided to translate. Please provide the text you want translated.
Main technical specifications
| MODEL | RSP-2000-12 | RSP-2000-24 | RSP-2000-36 | RSP-2000-48 |
|---|---|---|---|---|
| DC output voltage | 12V | 24V | 36V | 48V |
| Nominal Output Current | 125A | 67A | 44.5A | 33.5A |
| Current output range | 0 ~ 125A | 0 ~ 67A | 0 ~ 44.5A | 0 ~ 33.5A |
| Nominal output power | 1500W | 1608W | 1602W | 1608W |
| Efficiency | 88% | 90.5% | 91% | 92% |
| Input voltage | 90 ~ 264VAC | |||
| Working temperature | -4 ~ +158 °F | |||
| PFC | YES | |||
| Dimensions | 295x127x41mm | |||
| Certification | CE, CB, EAC | |||
| For purchases and sampling | CONTACT US | |||
See also:
Download the power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24
36
48 - Input Voltage VAC
- 90 ~ 264VAC
90 ~ 264VAC - Operating Temperature
- -4°F / +158°F
- Rating
- 453
- Power W
- 1600
- PFC
- YES
- Warranty
- 5 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 92%
- Dimensions
- 300x85x41mm
- Output Current mA
- 33500
44500
67000
125000 - Output Current A
- 33.5
44.5
67
125 - Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Could you please provide the full text you would like to be translated?
