LMF1500-20B - Alimentatore AC/DC Mornsun Chiuso - 1500W - Tensioni 12V, 15V, 24V, 27V, 36V, 48V, 54V
zoom_out_map
chevron_left chevron_right

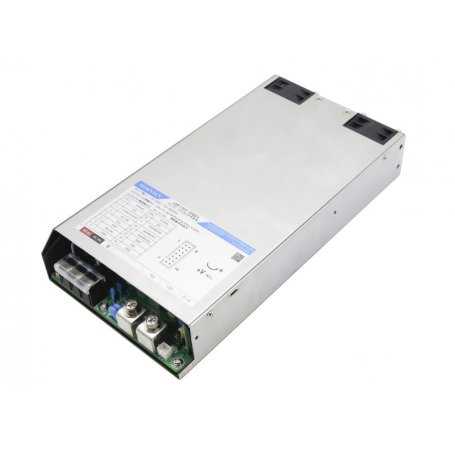

The product image may slightly differ as it is representative of the family and not the model.

LMF1500-20B - AC/DC Power Supply Mornsun Enclosed - 1500W - Voltages 12V, 15V, 24V, 27V, 36V, 48V, 54V

€200.34 The text "LMF1500-20B12" doesn't appear to be in Italian or any other language. It seems to be a model or part number and does n
€200.34 The text appears to be a model or part number and does not require translation.
€200.34 The text "LMF1500-20B24" is a product code or a specific identifier and does not require translation.
€200.34 LMF1500-20B27
€200.34 LMF1500-20B36 (Note: This appears to be a product model number or a specific code, which would not be translated between languag
€200.34 The text "LMF1500-20B48" is not in Italian, it seems to be a model or part number and does not require translation.
€200.34 LMF1500-20B54 (This appears to be a product code or model number, which would remain the same in any language.)

€200.34 Tax excluded

€200.34 Tax excluded

error_outline Product available with different options
0-4 5-9 10-19 20 + Modello
€200.34 €196.33 €192.33 €188.32 The text "LMF1500-20B12" doesn't appear to be in Italian or any other language. It seems to be a model or part number and does n
€200.34 €196.33 €192.33 €188.32 The text appears to be a model or part number and does not require translation.
€200.34 €196.33 €192.33 €188.32 The text "LMF1500-20B24" is a product code or a specific identifier and does not require translation.
€200.34 €196.33 €192.33 €188.32 LMF1500-20B27
€200.34 €196.33 €192.33 €188.32 LMF1500-20B36 (Note: This appears to be a product model number or a specific code, which would not be translated between languag
€200.34 €196.33 €192.33 €188.32 The text "LMF1500-20B48" is not in Italian, it seems to be a model or part number and does not require translation.
€200.34 €196.33 €192.33 €188.32 LMF1500-20B54 (This appears to be a product code or model number, which would remain the same in any language.)
Description

Available models: LMF1500-20B12, LMF1500-20B15, LMF1500-20B24, LMF1500-20B27, LMF1500-20B36, LMF1500-20B48, LMF1500-20B54

The LMF1500-20B series features AC/DC boxed switching power supplies. It offers universal AC input and at the same time admits universal DC voltage, advantageous savings, low no-load consumption, high efficiency, high reliability and double reinforced insulation. These converters offer excellent EMC performance and meet the IEC/EN/UL62368, EN/ES/IEC60601, IEC60335, GB4943 standards, allowing a wide use in industrial sectors, LED, street light control, electricity, security, telecommunications and smart home automation.

Features:

  • High efficiency up to 94%, high reliability
  • Universal input voltage 85 - 264VAC or 120 - 370VDC
  • Accepts AC or DC input (dual use of the same terminal)
  • Ambient temperature operating range: from -40 ° C to + 70 ° C
  • Active PFC function
  • Output short circuit protection, overcurrent, overvoltage, overtemperature
  • Supports 3 + 1 parallel redundancy, current sharing
  • Operational up to 5000 m altitude
  • Safety according to IEC/EN/UL62368-1, EN/ES/IEC60601-1, IEC60335-1, GB4943.1
  • Automatically adjustable fan speed
  • Dimensions: 250.0mm x 127.0mm x 40.5mm

Applications:

  • Industrial areas
  • Street lighting control
  • Telecommunications
  • Home automation
  • LED

Our vote:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡⚡
    • ⚡⚡⚡

Main technical specifications

MODEL* LMF1500-20B12 LMF1500-20B15  LMF1500-20B24  LMF1500-20B27 LMF1500-20B36 LMF1500-20B48 LMF1500-20B54
Output Power (W)  1510 1510 1510 1522 1522 1546 1522

Rated output voltage and current (Vo / Io) Main

 12V/125A  15V/100A 24V/62.5A 27V/56A 36V/42A 48V/32A 54V/28A

Rated output voltage and current (Vo / Io) Auxiliary

 5V/2A

Main output voltage adjustable range ADJ (V) Main

 12-14.4 15-18 24-28.8  27-32.4 36-43.2 48-56  54-58
Efficiency at 230VAC
(%) Typ		 92% 92%  94% 94% 94% 94% 94%

Capacitive load
(µF) max. Main

 40000 20000 10000 8000 6000 4000 3000

Capacitive load
(µF) max. Auxiliary

 1000

Dimensions

 250.0mm x 127.0mm x 40.5mm
PFC Yes
For purchases and samples CONTACT US

Discover more information about

Attachments

LMF1500-20B Datasheet V2

LMF1500-20B Datasheet V2

file_download Download (3.18MB)

Data sheet
Mornsun
LMF1500-20B12
0 Items
7438645972575
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
15
24
27
36
48
54
Input Voltage VAC
85~264VAC
85~264VAC
Operating Temperature
-40°C / +70°C
Rating
453
Power W
1500
PFC
Yes
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
94%
Dimensions
250.0mm x 127.0mm x 40.5mm
Output Current A
2
21
28
32
42
56
62.5
80
100
125
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
Industrial Automation
LED Power Supply
Security
Input Voltage VAC (Nominal)
110
220
Product Family
