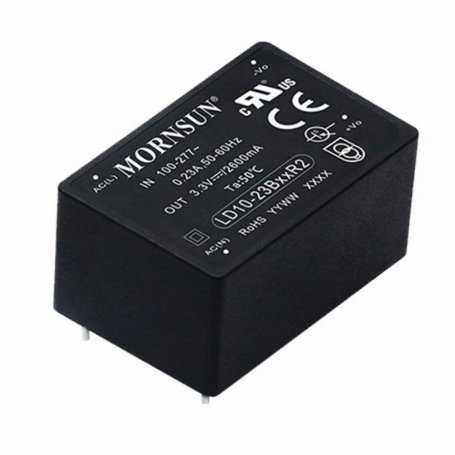

The product image may slightly differ as it is representative of the family and not the model.
LD10-23BxxR2 AC/DC Power Supply Mornsun 10W Voltages 3.3V 5V 9V 12V 15V 24V DIP
Description
The AC DC power supply Mornsun of the LD10-23BxxR2 series has a single 10W output, with an input voltage (85 - 305VAC/100 - 430VDC), with output voltages 3.3V 5V 9V 12V 15V 24V
The LD10-23BxxR2 series has been specifically designed for industrial, power, household appliances, instrumentation, communication and civil applications.
Features:
- High efficiency up to 85%
- Ultra wide input voltage range from 85 to 305 VAC and from 100 to 430 VDC
- Ambient operating temperature range: from -40 ℃ to + 85 ℃
- No-load power consumption
- Application at an altitude of 5000 m
- EMI performance meets CISPR32 / EN55032 CLASS B, EN55014
- Safety Approval IEC / EN / UL62368 / EN60335 / EN61558
- DIP Package
- Dimensions: DIP package 40x25.40x21mm / A2S chassis mounting 76x31.50x29.80mm / A4S Din-Rail mounting 76x31.50x34.40mm
Applications:
- Industrial
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL* | LD10-23B03R2 | LD10-23B05R2 | LD10-23B09R2 | LD10-23B12R2 | LD10-23B15R2 | LD10-23B24R2 | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output power (W) | 8.6W | 10W | 10W | 10W | 10W | 10W | ||||||||||||||||||||||||||||||||
|
Rated output voltage and current (Vo/Io) |
3.3V/2600mA | 5V/2000mA | 9V/1100mA | 12V/830mA | 15V/660mA | 24V/410mA | ||||||||||||||||||||||||||||||||
| Efficiency at 230VAC (%) Typ |
74% | 79% | 81% | 84% | 84% | 85% | ||||||||||||||||||||||||||||||||
|
Capacitive load |
6600 | 5000 | 3600 | 2000 | 820 | 470 | ||||||||||||||||||||||||||||||||
| PFC | NO | |||||||||||||||||||||||||||||||||||||
| Certification | UL/CE/CB | |||||||||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||||||||||
Note: * Use the suffix "A2S" for chassis and the suffix "A4S" for DIN rail mounting
Find out more information about AC-DC power supplies with 85-305VAC input voltage
Data sheet
- Output Voltage VDC
- 3.3
5
9
12
15
24 - Input Voltage VAC
- 85~305VAC
85~305VAC - Operating Temperature
- -40°C / +85°C
- Rating
- 453
- Power W
- 10
- PFC
- No
- Mechanical Mounting Format
- Printed Circuit Board - PCB
- Efficiency
- 85%
- Dimensions
- A2S chassis mounting 76x31.50x29.80mm
A4S Din-Rail mounting 76x31.50x34.40mm
DIP package 40x25.40x21mm - Output Current A
- 0.41
0.66
0.83
1.1
2
2.6 - Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- Industrial Automation
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- LD10-23BxxR2
