LD05-23BxxR2-M LD05-23BxxR2-M - Alimentatore AC/DC Mornsun - 5W - Tensioni di Uscita 3.3V 5V 9V 12V 15V 24V - DIP4 Mornsun ...
zoom_out_map
chevron_left chevron_right

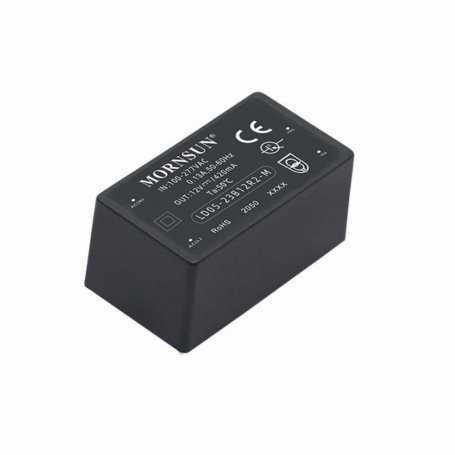

The product image may slightly differ as it is representative of the family and not the model.

LD05-23BxxR2-M AC/DC Power Supply Mornsun 5W Voltages 3.3V 5V 9V 12V 15V 24V DIP4

€4.20 The text "LD05-23B03R2-M" is a code or model number and does not require translation from Italian to English.
€4.20 The text "LD05-23B05R2-M" doesn't appear to be in Italian or any other language. It seems to be a model number or a code. The tr
€4.20 LD05-23B09R2-M
€4.20 The text seems to be a model number or product code and does not require translation.
€4.20 The text "LD05-23B15R2-M" is not in Italian, it appears to be a model or part number and does not require translation.
€4.20 The text "LD05-23B24R2-M" appears to be a model number or code and therefore does not require translation.

€4.20 Tax excluded

€4.20 Tax excluded

error_outline Product available with different options
1-4 5-9 10-19 20 + Modello
€4.20 €4.12 €4.03 €3.95 The text "LD05-23B03R2-M" is a code or model number and does not require translation from Italian to English.
€4.20 €4.12 €4.03 €3.95 The text "LD05-23B05R2-M" doesn't appear to be in Italian or any other language. It seems to be a model number or a code. The tr
€4.20 €4.12 €4.03 €3.95 LD05-23B09R2-M
€4.20 €4.12 €4.03 €3.95 The text seems to be a model number or product code and does not require translation.
€4.20 €4.12 €4.03 €3.95 The text "LD05-23B15R2-M" is not in Italian, it appears to be a model or part number and does not require translation.
€4.20 €4.12 €4.03 €3.95 The text "LD05-23B24R2-M" appears to be a model number or code and therefore does not require translation.
Description

The AC DC power supply Mornsun from the series LD05-23BxxR2-M has a single output of 5W, with an input voltage (85 - 305VAC or 100 - 430VDC), with output voltages 3.3V 5V 9V 12V 15V 24V

The LD05-23BxxR2-M series has been specially designed for industrial, power, home appliance, instrumentation, communication, and civil applications.

Features:

  • High efficiency up to 81.5%
  • Ultra-wide input voltage range from 85 to 305 VAC and 100-430 VDC
  • Operating ambient temperature range: from -40 ℃ to + 85 ℃
  • No-load power consumption 0.1 W.
  • Application of altitude of 5000 m
  • The plastic housing meets UL94V-0 flammability
  • EMI performance meets CISPR32 / EN55032 CLASS B, EN55014
  • Designed to meet IEC / UL62368 / EN60335 / EN61558 standards
  • EN62368 safety approval
  • DIP package
  • Dimensions: 45.70x25.40x21.50 mm

Applications:

  • Industrial
  • Home Appliances

Our rating:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡⚡
    • ⚡⚡⚡

Main technical specifications

MODELLD05-23B03R2-MLD05-23B05R2-MLD05-23B09R2-MLD05-23B12R2-MLD05-23B15R2-MLD05-23B24R2-M
Output power (W)  4.95W 5.00W 5.04W 5.04W 4.95W 5.52W

Nominal output voltage and current (Vo/Io)

 3.3V/1500mA 5V/1000mA 9V/560mA 12V/420mA 15V/330mA 24V/230mA
Efficiency at 230VAC
(%) Typ 		 71.5% 77.5% 80.5% 80.5% 81.5% 81.5%

Capacitive load
(µF) max.

 4000 3000 1200 1200 680 220
PFC NO
Certification  CE
For purchases and samples CONTACT US

Discover more information about AC-DC power supplies with 85-305VAC input voltage

Discover more information about

Attachments

Datasheet ACDC LD05-23BxxR2-M

Datasheet ACDC LD05-23BxxR2-M

file_download Download (451.05KB)

Data sheet
Mornsun
LD05-23B03R2-M
0 Items
7438645970847
Output Voltage VDC
3.3
5
9
12
15
24
Input Voltage VAC
85~305VAC
85~305VAC
Operating Temperature
-40°C / +85°C
Rating
453
Power W
5
PFC
No
Mechanical Mounting Format
Printed Circuit Board - PCB
Efficiency
81.5%
Dimensions
45.70x25.40x21.50 mm
Output Current A
0.23
0.33
0.42
0.56
1
1.5
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
Industrial Automation
Input Voltage VAC (Nominal)
110
220
Product Family
LD05-23BxxR2-M
