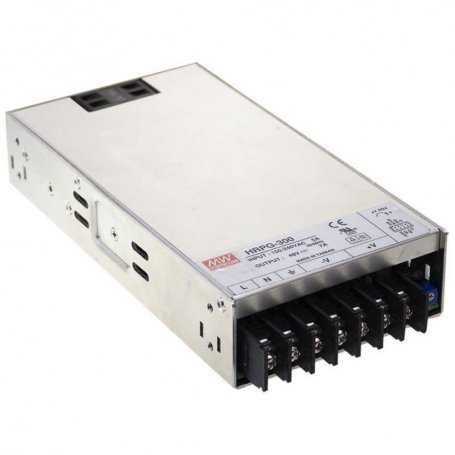

The product image may slightly differ as it is representative of the family and not the model.
HRPG-300 - Power Supply Mean Well - Boxed 300W - Voltages 3.3V, 5V, 7.5, 12V, 15V, 24V, 36V, 48V
Description
Power supply Mean Well series HRPG-300, power 300Watt, output voltages 3.3V, 5V, 7.5, 12V, 15V, 24V, 36V, 48V
The power supplies of the HRPG-300 series by Mean Well are ac/dc power supplies in a closed metal container with active PFC.
The power delivered is about 300W.
The entire product family of the HRPG series is designed and certified for ITE applications, industrial automation, and telecommunications.
Features
- Universal AC input 85-264VAC / Full range
- Built-in active PFC function PF>0.95
- Resistant to 300VAC input surges for 5 seconds
- Protections: short circuit, overload, overvoltage, overtemperature
- Integrated ON-OFF control of the cooling fan
- Integrated remote ON-OFF control
- Built-in remote sensing function
- No-load power consumption
- Remote sensing function
- 5-year warranty
- Dimensions: 199x105x41mm
Applications:
- Factory or automation control devices
- Industrial applications
- IT - Information Technology
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | HRPG-300-3.3 | HRPG-300-5 | HRPG-300-7.5 | HRPG-300-12 | HRPG-300-15 | HRPG-300-24 | HRPG-300-36 | HRPG-300-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V | |||||||||||||||||||||||
| Nominal output current | 60A | 60A | 40A | 27A | 22A | 14A | 9A | 7A | |||||||||||||||||||||||
| Rated output power | 198W | 300W | 300W | 324W | 330W | 336W | 324W | 336W | |||||||||||||||||||||||
| Efficiency | 80% | 82% | 86% | 88% | 88% | 87% | 88% | 89% | |||||||||||||||||||||||
| Input voltage | 85~264VAC | ||||||||||||||||||||||||||||||
| Working temperature | -40 ~ +70 °C | ||||||||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||||||||
| Dimensions | 199x105x41mm | ||||||||||||||||||||||||||||||
| Certification | CE, CB, EAC | ||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||||
See also:
Download the power supply catalogs in the attachments tab.
Find out more information about
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 3.3
5
7.5
12
15
24
36
48 - Input Voltage VAC
- 85~264VAC
85~264VAC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 300
- PFC
- Yes
- Warranty
- 5 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 89%
- Dimensions
- 199x105x41mm
- Output Current mA
- 7000
9000
14000
22000
27000
40000
60000 - Output Current A
- 7
9
14
22
27
40
60 - Input Connector
- At Speed
- Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- Electromedical
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in. - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- HRPG
