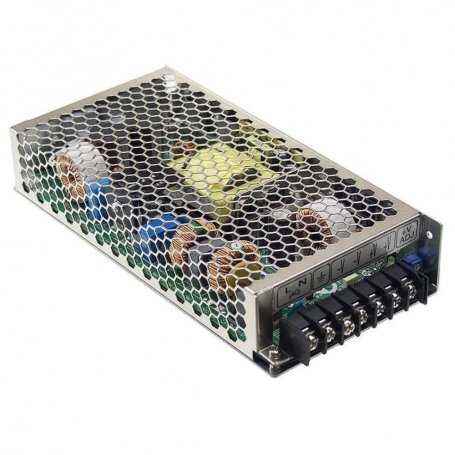

The product image may slightly differ as it is representative of the family and not the model.
HRPG-200 - Power Supply Mean Well - Boxed 200W - Voltages 3.3V, 5V, 7.5, 12V, 15V, 24V, 36V, 48V
Description
Power supply Mean Well HRPG-200 series, power 200Watt, output voltages 3.3V, 5V, 7.5, 12V, 15V, 24V, 36V, 48V
The power supplies of the HRPG-200 series from Mean Well are ac/dc power supplies in a closed metal container with active PFC.
The power output is about 200W.
The entire HRPG product family is designed and certified for ITE applications, industrial automation, and telecommunications.
Features
- Universal AC input 85-264VAC / Full range
- Integrated active PFC function PF>0.95
- Resistant to 300VAC input spikes for 5 seconds
- Protections: short circuit, overload, overvoltage, overtemperature
- Free air convection cooling
- Integrated ON-OFF remote control
- No load power consumption
- Remote detection function
- 5 years warranty
- Dimensions: 199x98x38mm
Applications:
- Factory or automation control devices
- Industrial applications
- IT - Information Technology
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | HRPG-200-3.3 | HRPG-200-5 | HRPG-200-7.5 | HRPG-200-12 | HRPG-200-15 | HRPG-200-24 | HRPG-200-36 | HRPG-200-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V | |||||||||||||||||||||||
| Nominal output current | 40A | 35A | 26.7A | 16.7A | 13.4A | 8.4A | 5.7A | 4.3A | |||||||||||||||||||||||
| Nominal output power | 132W | 175W | 200.3W | 200.4W | 201W | 201.6W | 205.2W | 206.4W | |||||||||||||||||||||||
| Efficiency | 80% | 84% | 86% | 88% | 88% | 88% | 89% | 89% | |||||||||||||||||||||||
| Input voltage | 85~264VAC | ||||||||||||||||||||||||||||||
| Working temperature | -40 ~ +70 °C | ||||||||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||||||||
| Dimensions | 199x98x38mm | ||||||||||||||||||||||||||||||
| Certification | CE, CB, EAC | ||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||||
See also:
Download the power supplies catalogs in the attachments tab.
Discover more information about
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 3.3
5
7.5
12
15
24
36
48 - Input Voltage VAC
- 85~264VAC
85~264VAC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 200
- PFC
- Yes
- Warranty
- 5 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 89%
- Dimensions
- 199x98x38mm
- Output Current mA
- 4300
5700
8400
13400
16700
26700
35000
40000 - Output Current A
- 4.3
5.7
8.4
13.4
16.7
26.7
35
40 - Input Connector
- At Speed
- Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- Electromedical
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in. - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- HRPG
