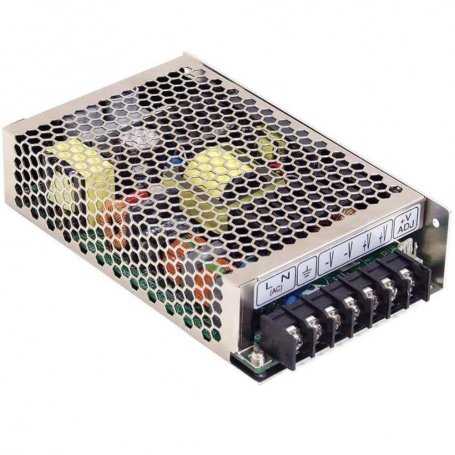

The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci
HRPG-150 - Power Supply Mean Well - Boxed 150W - Voltages 3.3V, 5V, 7.5, 12V, 15V, 24V, 36V, 48V
Description
Mean Well power supply HRPG-150 series, 150Watt power, output voltages 3.3V, 5V, 7.5, 12V, 15V, 24V, 36V, 48V
The power supplies of the HRPG-150 series by Mean Well are ac/dc power supplies in a sealed metal case with active PFC.
The output power is approximately 150W.
The entire family of products in the HRPG series is designed and certified for ITE, industrial automation and telecommunications applications.
Features
- Universal AC input 85-264VAC / Full range
- Integrated active PFC function PF>0.95
- Resistant to 300VAC input peaks for 5 seconds
- Protections: short circuit, overload, overvoltage, overtemperature
- Free air convection cooling
- Integrated ON-OFF remote control
- No load power consumption
- Remote detection function
- 5-year warranty
- Dimensions: 159x97x38mm
Applications:
- Factory or automation control devices
- Industrial applications
- IT - Information Technology
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡

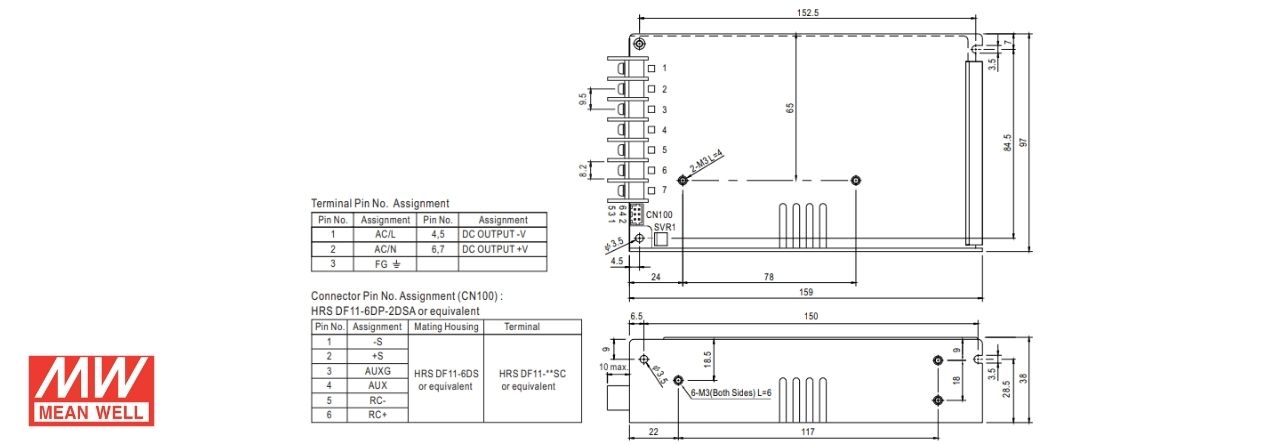

Mechanical Features
Main technical specifications
| MODEL | HRPG-150-3.3 | HRPG-150-5 | HRPG-150-7.5 | HRPG-150-12 | HRPG-150-15 | HRP-150G-24 | HRP-150G-36 | HRP-150G-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V | |||||||||||||||||||||||
| Nominal output current | 30A | 26A | 20A | 13A | 10A | 6.5A | 4.3A | 3.3A | |||||||||||||||||||||||
| Nominal output power | 99W | 130W | 150W | 156W | 150W | 156W | 154.8W | 158.4W | |||||||||||||||||||||||
| Efficiency | 78.5% | 84% | 86% | 87% | 87% | 87% | 88% | 88% | |||||||||||||||||||||||
| Input voltage | 85~264VAC | ||||||||||||||||||||||||||||||
| Operating temperature | -40 ~ +70 °C | ||||||||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||||||||
| Dimensions | 159x97x38mm | ||||||||||||||||||||||||||||||
| Certification | CE, CB, EAC | ||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||||
See also:
Download the power supply catalogs in the attachments tab.
Discover more information on
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 3.3
5
7.5
12
15
24
36
48 - Input Voltage VAC
- 85~264VAC
85~264VAC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 150
- PFC
- Yes
- Warranty
- 5 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 88%
- Dimensions
- 159x97x38mm
- Output Current mA
- 3300
4300
6500
10000
13000
20000
26000
30000 - Output Current A
- 3.3
4.3
6.5
10
13
20
26
30 - Input Connector
- At Speed
- Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- Electromedical
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in. - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- HRPG
