The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci

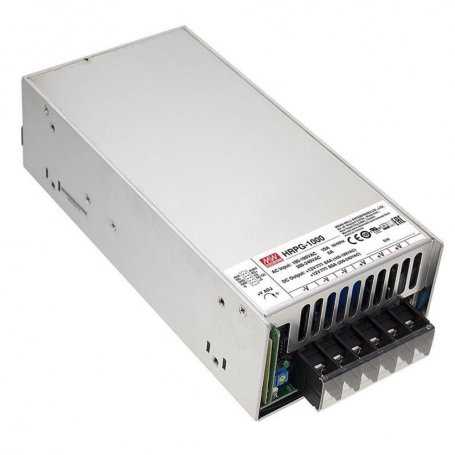

HRPG-1000 - Power Supply Mean Well - Boxed 1000W - Voltages 12V, 15V, 24V, 48V
Description
Power supply Mean Well series HRPG-1000, power 1000Watt, output voltages 12V, 15V, 24V, 48V
The power supplies of the HRPG-1000 series from Mean Well are ac/dc power supplies in a closed metal container with active PFC.
The power output is around 1000W.
The entire product family of the HRPG series is designed and certified for ITE applications, industrial automation and telecommunications.
Features
- Universal AC input 90-264VAC / Full range
- Integrated active PFC function PF>0.95
- Resistant to 300VAC input surges for 5 seconds
- Protections: short circuit, overload, overvoltage, overtemperature
- Integrated cooling fan ON-OFF control
- Integrated remote ON-OFF control
- Integrated remote detection function
- No-load power consumption
- Remote detection function
- Current sharing up to 4000W (3+1)
- 5-year warranty
- Dimensions: 218x105x63.5mm
Applications:
- Factory or automation control devices
- Industrial applications
- IT - Information Technology
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | HRPG-1000-12 | HRPG-1000-15 | HRPG-1000-24 | HRPG-1000-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 12V | 15V | 24V | 48V | |||||||||||||||||||||||
| Nominal output current | 80A | 64A | 42A | 21A | |||||||||||||||||||||||
| Nominal output power | 960W (max. 1000W for 3 seconds) | 960W (max. 1000W for 3 seconds) | 1008W | 1008W | |||||||||||||||||||||||
| Efficiency | 91.5% | 92% | 93% | 94% | |||||||||||||||||||||||
| Input voltage | 90~264VAC | ||||||||||||||||||||||||||
| Operating temperature | -40 ~ +70 °C | ||||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||||
| Dimensions | 218x105x63.5mm | ||||||||||||||||||||||||||
| Certification | CE, CB, EAC | ||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||
Also see:
Download the power supply catalogs in the attachments tab.
Discover more information about
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
15
24
48 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 1000
- PFC
- Yes
- Warranty
- 5 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 94%
- Dimensions
- 218x105x63.5mm
- Output Current mA
- 21000
42000
64000
80000 - Output Current A
- 21
42
64
80 - Input Connector
- At Speed
- Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- Electromedical
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in. - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- HRPG
