The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci

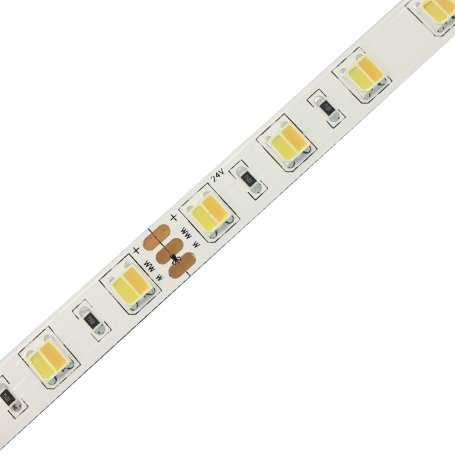

SMD 5050 CCT LED Strips 60 LEDs/m - 2300 lumens 24V - CRI90
Description
Cod: P.5050.60.2490CCT
Flexible LED strip SMD type 5050 - length 5 meters.
Equipped with 3M adhesive tape for fixing.
Available with IP20 protection rating.
Available CRI+90Ra | CRI+95Ra
Technical Specifications:
| Dimensions | 5000x10mm |
| Power Consumption W | 60W / 15W/m |
| Voltage V | 24V |
| Operating Temp. | -20°C / +45°C |
| Humidity | 40% ~ 70% RH |
| MTBF | 25,000 hours |
| CCT | 1900~3500K< |
| Product Code | CCT | LED TYPE | S. D. | LEDs m | W/m | Power W | Lumen lm/m | Eff. LM/W | PCB width | Cut length | CRI | CRI +90 | CRI +95 | |
| P.5050.60.2490CCT | 1900~3500K | 5050 | S | 60 | 15 | 60 | 2300 | 70 | 10mm | 5cm | 90 | Yes | opt. |
Data sheet
- LED Type
- 5050 SMD
- Power Supply Type
- Constant Voltage / CV
- Input Voltage Volt
- 24
- Available Temperatures
- Dynamic White CCT
- Operating Temperature
- -4°F / 113°F
- Rating
- 4.5
- Number of LEDs
- 60 LEDs/m
- Cutting Length
- 5 cm
- LED Line
- Single
- PCB Width
- 10mm
- Luminous Flux
- 2300 Lumens Max
- Efficiency LM/W
- 70 lm/w Max
- IRC (Italian Red Cross)
- Ra+90
- Other Optional CRI
- Ra+90 / Ra+95
