P.5050.60.2480 Strisce Led SMD 5050 60 Led/ m - 5280 lumen 24V - CRI80 Power-Supply Strisce di LED
zoom_out_map
chevron_left chevron_right

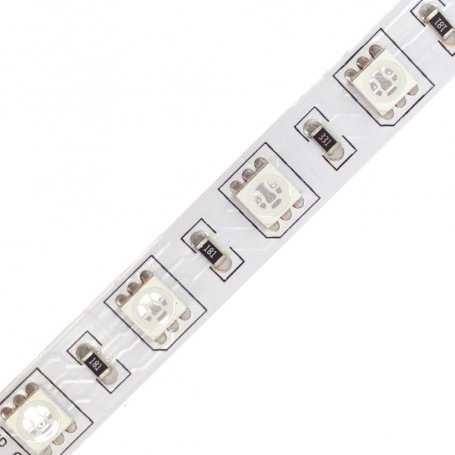

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

SMD 5050 60 Led/m LED Strips - 5280 lumen 24V - CRI80

€20.58 3000K Warm White e IP20 e 24V
€33.60 3000K Warm White e IP68 e 24V
€29.89 3000K Warm White e IP65 e 24V
€23.66 3000K Warm White e IP67 e 24V
€23.66 4000K Natural White e IP67 e 24V
€33.60 4000K Natural White e IP68 e 24V
€20.58 4000K Natural White e IP20 e 24V
€29.89 4000K Natural White e IP65 e 24V
€20.58 6500K Cool White e IP20 e 24V
€33.60 6500K Cool White e IP68 e 24V
€3.01 6500K Cool White e IP65 e 24V
€23.66 6500K Cool White e IP67 e 24V

€20.58 Tax excluded

€20.58 Tax excluded

block Non disponibile - contattaci
Description

Code: P.5050.60.2480

Flexible LED strip SMD type 5050 - length 5 meters.

Equipped with 3M adhesive tape for fixing.

Available with IP20 / IP65 / IP67 protection rating.

Available CRI+80Ra | CRI+90Ra | CRI+95Ra

Technical Specifications:

Dimensions 5000x10mm
Power Consumption W 60W / 12W/m
Voltage V 24V
Operating Temp. -20°C / +45°C
Humidity 40% ~ 70% RH
MTBF 25,000 hours



Product Code   CCT LED Type S. D. LEDs per meter W/m Power W Lumen lm/m Eff. LM/W PCB width Cutting length CRI CRI +90 CRI +95
P.5050.60.2480- WW22 4.5 2200K 5050 S 60 14.4 60 655 70 10mm 10cm 80 optional optional
P.5050.60.2480-WW24 4.5 2400K 5050 S 60 14.4 60 655 70 10mm 10cm 80 optional optional
P.5050.60.2480-WW27 4.5 2700K 5050 S 60 14.4 60 702 75 10mm 10cm 80 optional optional
P.5050.60.2480-WW30 4.5 3000K 5050 S 60 14.4 60 750 80 10mm 10cm 80 optional optional
P.5050.60.2480-NW40 4.5 4000K 5050 S 60 14.4 60 1040 83 10mm 10cm 80 optional optional
P.5050.60.2480-W55 4.5 5500K 5050 S 60 14.4 60 1100 85 10mm 10cm 80 optional optional
P.5050.60.2480-W65 4.5 6500K 5050 S 60 14.4 60 1200 88 10mm 10cm 80 optional optional
Attachments

Datasheet 564.5050.60.2480

DATASHEET

file_download Download (131.93KB)

Data sheet
ArredoLED.it
P.5050.60.2480-WW30
New
0655994244185
LED Type
5050 SMD
Power Supply Type
Constant Voltage / CV
Input Voltage Volt
24
Available Temperatures
from 2200K to 6500K
Operating Temperature
-4°F / 113°F
Rating
4.5
Power / m
14.4 W/m
Number of LEDs
60 LEDs/m
Cutting Length
10 cm
Lumen / m
1200
LED Line
Single
PCB Width
10mm
Luminous Flux
7000 Lumens Max
Efficiency LM/W
88 lm/w Max
IRC (Italian Red Cross)
Ra+80
Other Optional CRI
Ra+90 / Ra+95
