The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci

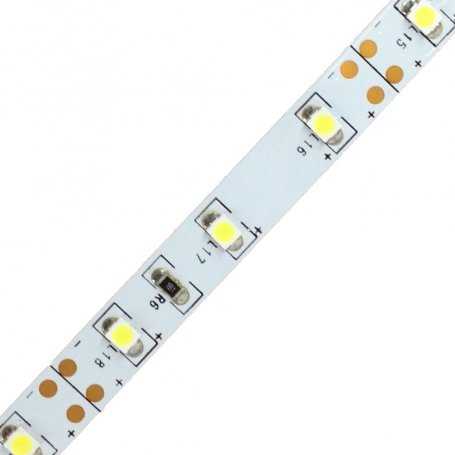

LED Strips SMD 3528 60 LED/m - 1209 Lumen/m 12V - CRI80
Description
Strip 60 LEDs/m 3528 SMD divisible every 5 cm, Power 13 W/m with luminous flux of 422 lumen/mt. Available color temperatures: 3000k Warm White 4000K Natural White 6500k Cool White PCB width 8mm CRI Ra+80
Our LED strips 3528 SMD with 60 LEDs/m are ideal for lighting cabinets or drawers.
Main features:
- LED 3528 SMD
- Power 13 W/m
- 5 meter coil
- Cuttable every 5 cm
- 60 LEDs/m
- Luminous flux 422 lumen/mt
- Available in colors: 3000k Warm White 4000K Natural White 6500k Cool White
- PCB width 8mm
- Color rendering index Ra+80
- IP20 IP65
Applications:
- Backlighting panels
- Drawer and cabinet lighting
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡
Main technical specifications
| MODEL | WW30 |
|---|---|
| Color temperature | 3000°K |
| Power per meter | 13 W/m |
| LED type | 3528 SMD |
| LED per meter | 60 LEDs/m |
| Lumen per Watt | 90 lm/W |
| Color rendering index CRI | Ra+80 |
| Input voltage | 12VDC |
| PCB width | 8mm |
| Cutting length | 5 cm |
| Coil length | 5 meters |
| Available IP protections | IP20 IP65 |
See also:
Data sheet
- LED Type
- 3528 SMD
- Power Supply Type
- Constant Voltage / CV
- Input Voltage Volt
- 12
- Available Temperatures
- 3000k Warm White
4000K Natural White
6500k Cool White - Operating Temperature
- -4°F / 113°F
- Rating
- 444
- Power / m
- 13 W/m
- Number of LEDs
- 60 LEDs/m
- Cutting Length
- 5 cm
- Lumen / m
- 422
- LED Line
- Single
- PCB Width
- 8mm
- IP Protection Grade
- IP20
IP65 - Luminous Flux
- 1209 Lumen Max
- Efficiency LM/W
- 90 lm/W
- IRC (Italian Red Cross)
- Ra+80
- Available Colors
- Red Yellow Blue Green
