Led Strips SMD 3014 - 60 led/m - 2800 lumen 24V - CRI80
Description
Code: H.3014.60.2480

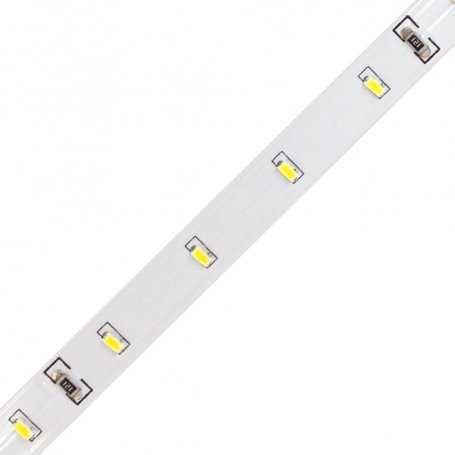

Flexible LED strip SMD type 3014 - length 5 meters.
Equipped with 3M adhesive tape for fixing.
Available with IP20 protection rating.
Available CRI+80Ra
Technical Specifications:
Dimensions 5000x10mm
Power Consumption W 36W / 7.2W/m
Voltage V 24V
Operating Temp. -20°C / +50°C
Humidity 40% ~ 70% RH
MTBF 50,000 hours
| Product Code | CCT | LED Type | S. D. | LEDs per meter | W/m | Power W | Lumen lm/m | Eff. LM/W | PCB width | Cutting length | CRI | CRI +90 | CRI +95 | |
| H.3014.60.2480-WW30 | 4.0 | 3000K | 3014 | S | 60 | 7.2 | 36 | 600 | 85 | 10mm | 10cm | 80 | n.d. | n.d. |
| H.3014.60.2480-NW40 | 4.0 | 4000K | 3014 | S | 60 | 7.2 | 36 | 660 | 90 | 10mm | 10cm | 80 | n.d. | n.d. |
| H.3014.60.2480-W65 | 4.0 | 6500K | 3014 | S | 60 | 7.2 | 36 | 700 | 95 | 10mm | 10cm | 80 | n.d. | n.d. |
Data sheet
- LED Type
- 3014 SMD
- Power Supply Type
- Constant Voltage / CV
- Input Voltage Volt
- 24
- Available Temperatures
- from 2200K to 6500K
- Operating Temperature
- -4°F / 113°F
- Rating
- 4
- Power W
- 36
- Power / m
- 7.2 W/m
- Number of LEDs
- 60 LEDs/m
- Cutting Length
- 10 cm
- Lumen / m
- 560
700 - LED Line
- Single
- PCB Width
- 8mm
- Luminous Flux
- 2800 Lumen Max
3500 Lumen Max - Efficiency LM/W
- 95 lm/w Max
- IRC (Italian Red Cross)
- Ra+80
