The product image may slightly differ as it is representative of the family and not the model.
On sale!Non disponibile - contattaci

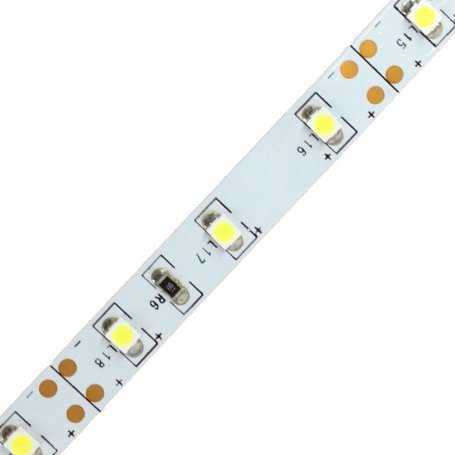

LED Strip SMD 3528 - 60 leds/m - 384 lumens/m - 4.8W/m - 12V - 5m PRO
Description
Strip 60 LEDs/m 3528 SMD divisible every 5 cm, Power 4.8 W/m with luminous flux of 384. Available color temperatures: 3000k Warm White 4000K Natural White 6500k Cool White from 3000K to 6500K PCB width 8mm CRI Ra+80
Our LED strips 3528 SMD with 60 LEDs/m are suitable for applications that do not require a large amount of light.
Main features:
- LED 3528 SMD
- Power 4.8 W/m
- 5 meter coil
- Cuttable every 5 cm
- 60 LEDs/m
- Luminous flux 384
- Available in colors: 3000k Warm White 4000K Natural White 6500k Cool White from 3000K to 6500K
- Wide PCB 8mm
- Color rendering index Ra+80
- IP20 IP65
Applications:
- Shelf and drawer lighting
- Backlighting bed headboard
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
Main technical specifications
| MODEL | WW30 | NW40 | CW60 |
|---|---|---|---|
| Color temperature | 3000°K | 4000°K | 6000°K |
| Power / meter | 4.8 W/m | ||
| LED type | 3528 SMD | ||
| LED / meter | 60 LEDs/m | ||
| Lumen / Watt | 80 lm/w Max | ||
| Color rendering index CRI | Ra+80 | ||
| Input voltage | 12VDC | ||
| PCB width | 8mm | ||
| Cutting length | 5 cm | ||
| Coil length | 5 meters | ||
See also:
`Data sheet
- LED Type
- 3528 SMD
- Power Supply Type
- Constant Voltage / CV
- Input Voltage Volt
- 12
- Available Temperatures
- 3000k Warm White
4000K Natural White
6500k Cool White
from 3000K to 6500K - Operating Temperature
- -4°F / 113°F
- Rating
- 555
- Power / m
- 4.8 W/m
- Number of LEDs
- 60 LEDs/m
- Cutting Length
- 5 cm
- Lumen / m
- 384
- LED Line
- Single
- PCB Width
- 8mm
- IP Protection Grade
- IP20
IP65 - Luminous Flux
- 1920 Lumens Max
- Efficiency LM/W
- 80 lm/w Max
- IRC (Italian Red Cross)
- Ra+80
- Other Optional CRI
- Ra+90 / Ra+95
