The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci

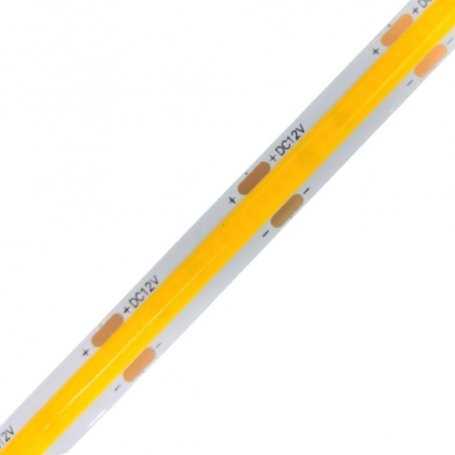

COB LED Strip - 480 leds/m - 900 lumens/m - 7W/m - 12V - 5m PRO
Description
Strip [[numero_led] [[tipo_led] divisible every 2.5 cm, Power 7 W/m with a luminous flux of 900 Lumens/m. Available color temperatures: 3000k Warm White 4000K Natural White PCB width 8mm CRI 90
Our LED strips COB of 480 LEDs/m are ideal for primary lighting and minimizing the dotted effect of LEDs.
Main Features:
- LED COB
- Power 7 W/m
- 5 meter coil
- Cuttable every 2.5 cm
- 480 LEDs/m
- Light flow 900 Lumens/m
- Available in colors: 3000k Warm White 4000K Natural White
- PCB width 8mm
- Color index 90
- IP20
Applications:
- Primary lighting
- Panel backlighting
- Wardrobe lighting
- Installation in coves
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
Main technical specifications
| MODEL | WW30 | NW40 | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Color temperature | 3000°K | 4000°K | |||||||||||||||||||||||||
| Power / meter | 7 W/m | ||||||||||||||||||||||||||
| Type of LED | COB | ||||||||||||||||||||||||||
| LED / meter | 480 LEDs/m | ||||||||||||||||||||||||||
| Lumen / Watt | 100 lm/W | ||||||||||||||||||||||||||
| Color rendering index CRI | 90 | ||||||||||||||||||||||||||
| Input voltage | 12VDC | ||||||||||||||||||||||||||
| PCB Width | 8mm | ||||||||||||||||||||||||||
| Cutting length | 2.5 cm | ||||||||||||||||||||||||||
| Coil length | 5 meters | ||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||
See also:
Data sheet
- LED Type
- COB
- Power Supply Type
- Constant Voltage / CV
- Input Voltage Volt
- 12
- Available Temperatures
- 3000k Warm White
4000K Natural White - Rating
- 555
- Power / m
- 7 W/m
- Number of LEDs
- 480 LEDs/m
- Cutting Length
- 2.5 cm
- Lumen / m
- 900 Lumens/m
- LED Line
- Single
- PCB Width
- 8mm
- IP Protection Grade
- IP20
- Luminous Flux
- 4500 Lumens Max
- Efficiency LM/W
- 100 lm/W
- IRC (Italian Red Cross)
- 90
