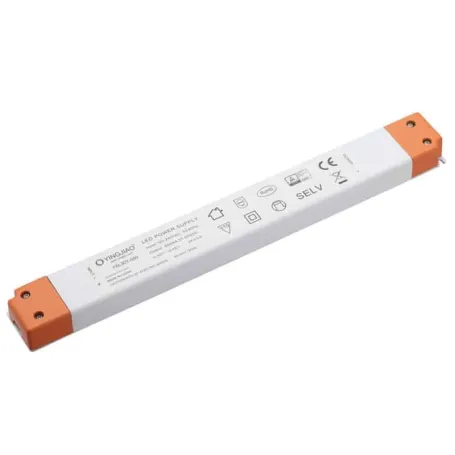

The product image may slightly differ as it is representative of the family and not the model.
YSL30T-30 - Yingjiao 30W LED Power Supply - Constant Voltage CV - Slim - 12V/24V/36V/48V
Description
Features
- Universal input: 100-240 VAC 50/60Hz; 200-240 50Hz
- Compliance RoHS
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current <65A AC230V/50Hz
- High efficiency and low power consumption
- Protection from short circuit, overcurrent and overvoltage
- Protection from overheating
- 100% full load burn-in test
Input: 90-265V AC 50/60Hz;
Output Voltage: 12V, 24V, 36V, 48V.
Rated Power: maximum 30W
Applications:
- LED Lighting
- Indoor LED Lighting
- Decorative LED Lighting
- Home Lighting
Our Rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main Technical Specifications
| MODEL | YSL30T-1202500 | YSL30T-2401250 | YSL30T-36008330 | YSL30T-4800625 |
|---|---|---|---|---|
| Output Type | Constant Voltage | |||
| Output Voltage | 12V | 24V | 36V | 48V |
| Rated Output Current | 2.5A | 1.25A | 0.833A | 0.625A |
| Power (Rated) | 30W | |||
| Dimmable | NO | |||
| Max Efficiency | 88% | |||
| Input Voltage VAC | 100-240VAC/200-240VAC | |||
| Dimensions | 160*30*16mm | |||
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24
36
48 - Input Voltage VAC
- 100~240VAC / 200~240VAC
- Rating
- 453
- Power W
- 30
- IP Protection Grade
- IP20
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 88%
- Dimensions
- 160x30x16mm
- Output Current mA
- 625
830
1250
2500 - Output Current A
- 0.83
0.625
1.25
2.5 - Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 2
- Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 220
- Product Family
