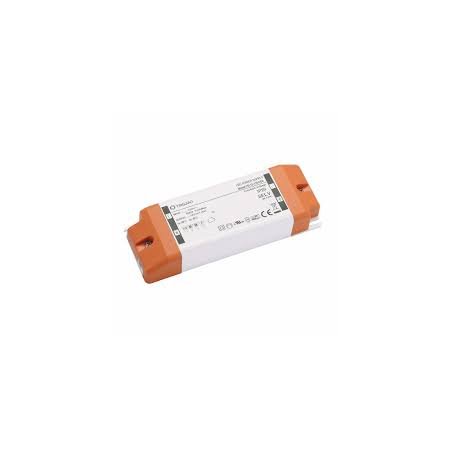

The product image may slightly differ as it is representative of the family and not the model.
YSL30-1202500 – LED Power Supply Yingjiao 30W – Constant Voltage CV – Ultra Slim – 12V – IP20
-
Nominal Power: 30W
-
Output Voltage: 12V DC
-
Output Current: 2.5A
-
Input Voltage: 220–240VAC
-
Input Frequency: 50Hz
-
Efficiency: ≥83% @ 230VAC
-
Power Factor: ≥0.9 @ full load
-
Protection Rating: IP20
-
Insulation Class: Class II
-
Type of Power Supply: Independent, with input and output cables
Features and Protections
-
Protections:
-
Overload (hiccup, auto-recovery)
-
Overvoltage (shutdown, manual restart)
-
Short circuit (auto-recovery)
-
Overtemperature (auto-recovery)
-
-
Compliant with:
-
ERP EU2019/2020
-
RoHS
-
EMC and safety standards: EN61347-2-13:2014+A1:2017, EN61347-1:2015+A1:2021, EN62493:2015, EN55015, EN61547:2009
-
Environmental Conditions
-
Operating Temperature: -20°C ~ +50°C
-
Storage Temperature: -40°C ~ +85°C
-
Operating Humidity: 20–95% RH
-
MTBF: 200,000 hours @ 25°C
-
Estimated Lifespan: >30,000 hours @ 40°C
Construction and Assembly
-
Case Material: Plastic
-
Dimensions: 251 × 30 × 17 mm
-
Weight: 150 g
-
Mounting: Independent (ultra slim)
-
Connectors: Pre-wired cables both input and output
-
Packaging: 100 pieces per carton
Applications
-
LED strips
-
Decorative lighting
-
Indoor lighting
-
Architectural lighting
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
- Input Voltage VAC
- 200~240VAC
- Power W
- 30
- IP Protection Grade
- IP20
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 83%
- Dimensions
- Output Current mA
- 2500
- Input Connector
- Cable
- Isolation Class
- Class 2
- Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 220
- Product Family
