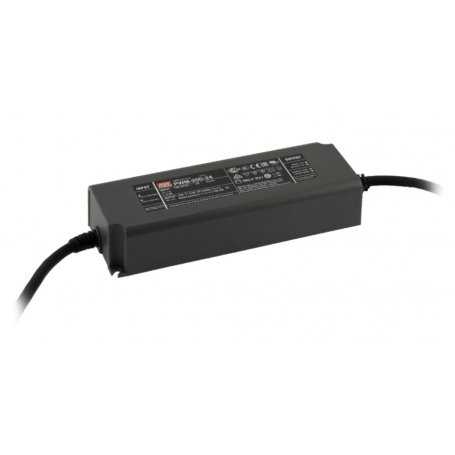

The product image may slightly differ as it is representative of the family and not the model.
PWM-200 IoT Meanwell - 200W LED Power Supply - Constant Voltage CV - Dimmable - Voltages 12V. 24V. 48V - IoT Wireless
Available models: PWM-200-12BLE, PWM-200-12TY1, PWM-200-12SVA, PWM-200-12WZ1, PWM-200-24BLE, PWM-200-24TY1, PWM-200-24SVA, PWM-200-24WZ1, PWM-200-48BLE, PWM-200-48TY1, PWM-200-48SVAM, PWM-200-48WZ1
LED power supplies Mean Well of the PWM-200 seriesthey are products with a 5-year warranty, protected by a sturdy plastic structure.
The series PWM-200 is not an Italian phrase, it's a term that could refer to a model or type of a product or device in various contexts. Therefore, its translation remains the same in English: PWM-200.It has a constant voltage output mode, has an input voltage range from 90-305 VAC and offers models with different nominal voltages ranging from 12 V to 48 V, capable of maintaining the color temperature and the brightness uniformity during the driving of all types of LED strips.
The entire series is classified with an IP67 protection level and is suitable for working in a variety of applications in dry, damp, or wet locations.
Features:
- Output constant tension PWM with frequency up to 4KHz
- Bluetooth Mesh Dimming Function
- Plastic Class II Case
- Active PFC
- 5 years warranty
Applications:
- LED panel lighting
- LED Spotlights
- LED lighting for interiors
- Decorative LED lighting
- LED tunnel lighting
Our vote:
- Reliability
- Price
- Features
- [[voto1]There is no text provided to translate. Please provide the text you want translated.
- [[voto2]There is no text provided to translate. Please provide the text you want translated.
- [[voto3]There is no text provided to translate. Please provide the text you want translated.
Main technical specifications
| MODEL | PWM-200-12[] | PWM-200-24[] | PWM-200-48[] |
|---|---|---|---|
| Type of exit | Constant Voltage / CV | ||
| DC output voltage | 12V | 24V | 48V |
| Nominal Output Current | 15A | 8.3A | 4.17A |
| Power (Nominal) | 180W | 199.2W | 200.2W |
| Efficiency | 92% | 93% | 94% |
| Input voltage range | 90 ~ 305VAC | ||
| Dimmable | Bluetooth PWM control | ||
| Working temperature | -20 ~ +80 °C | ||
| PFC | YES | ||
| Dimensions | 195*68*39.5mm | ||
| Protection Degree | IP67 | ||
| Certifications | CE, CB, EAC, CCC | ||
| For purchases and sampling | CONTACT US | ||
See also:
Download the LED power supply catalogs in the attachments tab.
- Dimming LED
- Bluetooth
- Led Dimming (interface)
- Bluetooth
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24
48 - Input Voltage VAC
- 90~305VAC
90~305VAC - Operating Temperature
- -4°F / +185°F
- Rating
- 453
- Power W
- 120
- PFC
- Yes
- IP Protection Grade
- IP67
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 91.5%
92.5%
93.5% - Dimensions
- 195*68*39.5mm
- Output Current mA
- 4170
8300
15000 - Output Current A
- 4.17
8.3
15 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- PWM
