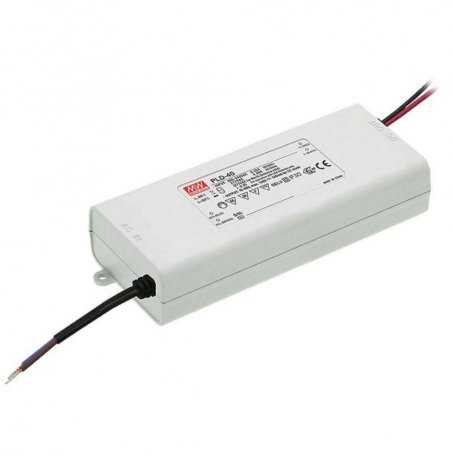

The product image may slightly differ as it is representative of the family and not the model.
PLD-40 Meanwell LED Power Supply 40W Constant Current DC Currents 350mA 500mA 700mA 1050mA 1400mA 1750mA
Description
Power supplies for Led Mean Well series PLD-40, power 40Watt, nominal current 350mA, 500mA, 700mA, 1050mA, 1400mA, 1750mA
The LED power supplies Mean Well of the PLD-40 series are entry level products, with a 3-year warranty, protected by a durable, insulated plastic structure.
Features:
- MeanWell LED power supply
- Constant Current / CC
- Universal AC input
- Active PFC function
- Protections: short circuit, overtemperature
- Cooling by free air convection
- Insulated plastic housing
- Class 2 power unit, no FG
- IP42 protection degree
- 100% full load burn-in test
- Suitable for LED devices or related devices (such as LED decorations or advertising devices)
- High reliability and low cost
- Dimensions: 128x60x31.5mm
- Warranty: 3 years
Applications:
- Video camera power supply
- LED strips
- LED spotlights power supply
- Suitable for LED lighting and mobile signage applications
- LED module lighting for signs
- LED displays
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | PLD-40-350B | PLD-40-500B | PLD-40-700B | PLD-40-1050B | PLD-40-1400B | PLD-40-1750B | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type of output |
Constant Current / CC |
||||||||||||||||||||||||||||
| Output Voltage Range | 70 ~ 108V | 45 ~ 80V | 34 ~ 57V | 22 ~ 38V | 17 ~ 29V | 13 ~ 23V | |||||||||||||||||||||||
| Nominal output current | 350mA | 500mA | 700mA | 1050mA | 1400mA | 1750mA | |||||||||||||||||||||||
| Power (Nominal) | 37.8W | 40W | 39.9W | 39.9W | 40.6W | 40.25W | |||||||||||||||||||||||
| Efficiency | 88% | 88% | 87% | 87% | 86% | 86% | |||||||||||||||||||||||
| Input voltage range | 180~295VAC | ||||||||||||||||||||||||||||
| Dimmable | NO | ||||||||||||||||||||||||||||
| Working temperature | -30 ~ +50 °C | ||||||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||||||
| Dimensions | 128x60x31.5mm | ||||||||||||||||||||||||||||
| Protection Degree | IP42 | ||||||||||||||||||||||||||||
| Certifications | CE, CB, EAC | ||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attached tab.
Data sheet
- Output Regulation Type
- Constant Current / CC
- Input Voltage VAC
- 190~295VAC
190~295VAC - Operating Temperature
- -30°C / +50°C
- Rating
- 453
- Power W
- 40
- PFC
- Yes
- IP Protection Grade
- IP42
- Warranty
- 3 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 88%
- Dimensions
- 128x60x31.5mm
- Output Current mA
- 350
500
700
1050
1400
1750 - Output Current A
- 0.5
0.7
0.35
1.05
1.4
1.75 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 220
- Product Family
- I need the full text in Italian to provide an accurate translation. "PLD" by itself does not provide sufficient context for a translation. Could you please provide more information or the complete text you would like translated?
