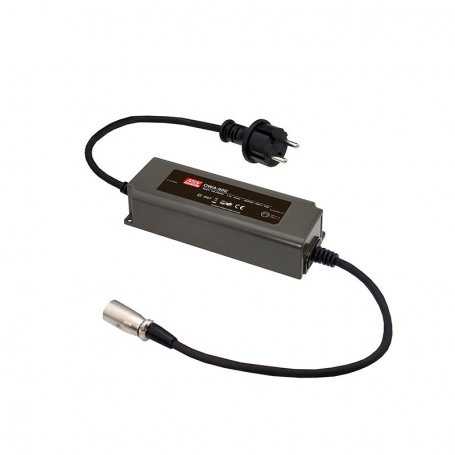

OWA-90E-54 Meanwell - LED Power Supply CV/CC - 90W 54V 1670mA
Description
- LED MeanWell Power Supply
- Constant Voltage CV
- Input: 90~264VAC
- Power: 90W
- Output: 54Vdc - 1.67A
- MeanWell LED Power Supply
- Constant Voltage CV
- Input: 90~264VAC
- Power: 90W
- Output: 54Vdc - 1.67A
- Active PFC
- Energy Efficiency: VI
- Standby Power Consumption <0.5watt
- Protections: Short Circuit / Overload / Overvoltage / Overheating
- Class II
- Insulated Plastic Encapsulated
- Fanless
- Warranty: 5 years
- Designed to withstand moisture and dust
Data sheet
- Output Regulation Type
- Constant Current / CC
Constant Voltage / CV - Output Voltage VDC
- 54
- Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -40°C / +70°C
- Power W
- 90
- IP Protection Grade
- IP67
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 91%
- Dimensions
- 171 x 63 x 37.5 mm
- Output Current mA
- 1670
- Output Current A
- 1.67
- Input Connector
- Cable
- Output Connection
- Wired
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- OWA
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 5
- MKP
- NO
- TK-CODE
- 13/0. [0.50.NO.]/LTT-5
