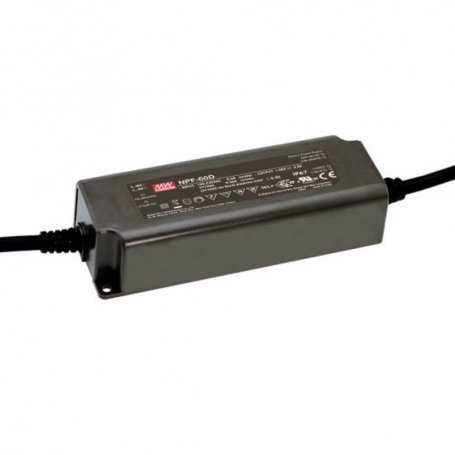

The product image may slightly differ as it is representative of the family and not the model.
NPF-60D Meanwell - 60W LED Power Supply - DC - Currents 1120mA 1250mA 1430mA 1670mA 2000mA 2500mA 3000mA 4000mA 5000mA
Power supplies for Led Mean Well series NPF-60D, power 60Watt, output currents 1.12A, 1.25A, 1.43A, 1.67A, 2A, 2.5A, 3A, 4A, 5A.
The LED power supplies from Mean Well of the NPF-60D series are produced with a 5-year warranty, protected by a durable plastic structure.
The NPF-60D series has a constant current output mode, has an input voltage range from 90-305 VAC and offers models with different nominal voltages between 12 V and 54 V.
The entire series is classified with IP67 protection level and is suitable for working for a variety of applications in dry, humid or wet locations.
NPF-60D is equipped with the 3 in 1 dimming function in order to provide design flexibility for the LED lighting system.
Features:
- MeanWell LED Power Supply
- Output in Constant Current Mode CC
- Class II
- Built-in active PFC function
- No-load power consumption
- IP67 rating for indoor or outdoor installations
- Typical lifespan>50000 hours
- Function: 3 in 1 dimming (dim-to-off)
- Dimensions: 150x53x35mm
- Warranty: 5 years
Applications:
- LEDD Panel Lighting
- LED Spotlights
- LED decorative lighting
- LED tunnel lighting
Our Rating:
- Reliability
- Price
- Features
- [[vote1]]
- [[vote2]]
- [[vote3]]
Main technical specifications
| MODEL | NPF-60D-12 | NPF-60D-15 | NPF-60D-2 | NPF-60D-24 | NPF-60D-30 | NPF-60D-36 | NPF-60D-42 | NPF-60D-48 | NPF-60D-54 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Type | Constant Current / CC | |||||||||||||||||||||||||||||||
| Constant current output | 7.2 ~ 12V | 9 ~ 15V | 12 ~ 20V | 14.4 ~ 24V | 18 ~ 30V | 21.6 ~ 36V | 25.2 ~ 42V | 28.8 ~ 48V | 32.4 ~ 54V | |||||||||||||||||||||||
| Nominal output current | 5A | 4A | 3A | 2.5A | 2A | 1.67A | 1.43A | 1.25A | 1.12A | |||||||||||||||||||||||
| Power (Nominal) | 60W | 60W | 60W | 60W | 60W | 60.12W | 60.06W | 60W | 60.48W | |||||||||||||||||||||||
| Efficiency | 86% | 87% | 88% | 89% | 90% | 90% | 90% | 90% | 90% | |||||||||||||||||||||||
| Input voltage range | 90 ~ 305VAC | |||||||||||||||||||||||||||||||
| Dimmable | YES | |||||||||||||||||||||||||||||||
| Working temperature | -40 ~ +85 °C | |||||||||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||||||||
| Dimensions | 150x53x35mm | |||||||||||||||||||||||||||||||
| Protection Degree | IP67 | |||||||||||||||||||||||||||||||
| Certifications | CE, CB, EAC, CCC | |||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
REPLACES ELN-60
- Output Regulation Type
- Constant Current / CC
- Output Voltage VDC
- 12
15
20
24
30
36
42
48
54 - Input Voltage VAC
- 90~305VAC
90~305VAC - Operating Temperature
- -40°C / +85°C
- Rating
- 453
- Power W
- 60
- PFC
- Yes
- IP Protection Grade
- IP67
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 90%
- Dimensions
- 150x53x35mm
- Output Current mA
- 1120
1250
1430
1670
2000
2500
3000
4000
5000 - Output Current A
- 1.12
1.25
1.43
1.67
2
2.5
3
4
5 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
