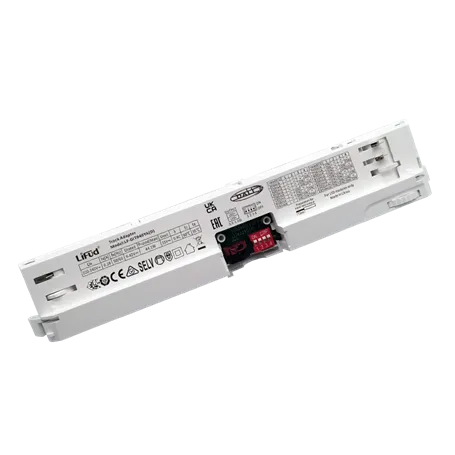

LF-GIT040YA(D) - LED Power Supply LiFUD 40W Jolly - Constant Current CC - from 300 to 1050 mA - DALI
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

LF-GIT040YA(D) - LED Power Supply LiFUD 40W Jolly - Constant Current CC - from 300 to 1050 mA - DALI

€9.45 White
€23.66 Black

€23.66 Tax excluded

€23.66 Tax excluded

€23.66 Senza tasse €28.87 Con tasse
error_outline Product available with different options
0-4 5-9 10-19 20 + Color
€9.45 €9.26 €9.07 €8.88 White
€23.66 €23.19 €22.71 €22.24 Black
Description
The LF-GIT040YA(D) power supply by Lifud is a constant current isolated LED driver, flicker-free and designed for commercial lighting, offices, and decorative applications. Equipped with DALI 2.0 control, it offers an adjustable output from 300mA to 1050mA via DIP switch, ensuring compatibility with various configurations of Class I and II luminaires.

The LF-GIT040YA(D) power supply by Lifud is an isolated constant current LED driver, flicker-free and designed for commercial lighting, offices, and decorative applications. Equipped with DALI 2.0 control, it offers an adjustable output from 300mA to 1050mA via DIP switch, ensuring compatibility with various configurations of Class I and II lighting fixtures.

Main Features:

  • Power: 44.1W

  • Input Voltage: 220-240Vac (range 198-264Vac)

  • Input Frequency: 0/50/60Hz

  • Output Voltage: 9-42V

  • Output Current: 300-1050mA (adjustable in steps of 50mA)

  • Efficiency: up to 87%

  • Power Factor (PF): ≥0.87

  • THD: ≤20%

  • Standby Consumption: ≤0.5W

  • Dimming: DALI 2.0 & PUSH

  • Short Circuit Protection: "Hiccup" mode with auto-recovery

  • Open Circuit Protection:

  • Operating Temperature: -20℃ ~ +35℃

  • Certifications: ENEC, CE, CB, UKCA, RCM, EAC

  • Protection Grade: IP20

  • Warranty: 5 years

Compatibility with Track Systems:

  • Nordic Aluminium

  • Stucchi

  • Powergear

Available Dimensions and Colors:

  • Dimensions: 217.8 x 42.2 x 31.1 mm

  • Colors: Black, White, Grey

Packaging and Logistics:

  • Packaging Format: 385 x 285 x 210 mm (LxWxH)

  • Qty per Carton: 24 pieces (8 per layer, 3 layers)

  • Weight: 0.157kg/piece, 4.43kg/carton

Dimming Functionality:

  • DALI 2.0: Compatible with IEC62386-101, 102, 207, 250, 251, 252, 253 standards

  • PUSH Dimmer:

    • Short Click (0.1-0.5s): On/Off

    • Long Click (0.6-9s): Adjust light intensity

    • Prolonged Click (>9s): Reset to 50% brightness

Additional Notes:

  • For safe installation, it is recommended to use overvoltage and undervoltage protection devices.

  • To ensure EMC compliance, the driver must be tested with the complete lighting fixture.

  • The assembly must use materials with a fire resistance class of UL94-V0 or higher.

Ideal Applications:

  • Commercial and retail lighting

  • Offices and work environments

  • Decorative and residential lighting

  • Integration with track lighting systems

Attachments

GIT040YA(D) Datasheet

file_download Download (859.07KB)

Data sheet
LiFUD
LF-GIT040YA(D)-B
New
0 Items
Dimming LED
Dali
Led Dimming (interface)
Dali
Input Voltage VAC
220~240VAC
220~240VAC
Output Voltage Range
9V~40V
Power W
40
IP Protection Grade
IP20
Warranty
5 Years
Mechanical Mounting Format
Closed Plastic Container
Output Current mA
300
350
400
450
500
550
600
650
700
750
800
850
900
950
1000
1050
Output Current A
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0.35
0.45
0.55
0.65
0.75
0.85
0.95
1
1.05
Isolation Class
Class 2
Certifications
It seems like "TUV" is not a word in Italian, and it does not provide any context to translate. Could you please provide more context or check if there might be a typo?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
I'm sorry, but the text you provided ("LF") is too short and lacks context for a meaningful translation. Could you please provide more information or a longer text?
