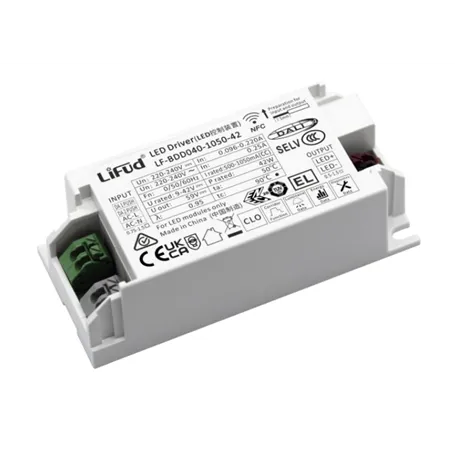

LF-BDD040-1050-42 LED Power Supply LiFUD - 40W - 500-1050mA Constant Current DC - DALI and PUSH dimmable
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

LF-BDD040-1050-42 LED Power Supply LiFUD - 40W - 500-1050mA Constant Current DC - DALI and PUSH dimmable

€22.96 Tax excluded

€22.96 Tax excluded

block Non disponibile - contattaci
Quantity Price
1-4 €22.96
5-9 €22.50
10-19 €22.04
20 + €21.58
Reference LF-BDD040-1050-42
Description



Characteristics of the product family:

  • DALI and PUSH dimmable
  • Dimming range: from 1 to 100%
  • Output current tolerance: 1%
  • Efficiency up to 90%
  • Output voltage range: 9-42V
  • Low THD
  • 5 year warranty

Advantages of the product family:

  • Advanced features:
    • THE
    • CorridorDIM
    • CLO
  • External parts DALI-2:
    • 251
    • 252
    • 253
  • Adjustable output current and parameter set via DALI or NFC programmer
  • 2 sets of L/N at the input, convenient for connecting in parallel multiple light devices with wide terminals for screwless wiring
  • Comply with Zhaga Book13, 24
  • Surge level:
    • PUSH: 1kV
    • L-N: 2kV

Typical applications:

  • For spotlights and recessed spotlights
  • For office, commercial and retail lighting

Product parameters:

  • Output current 500-1050mA
  • Output power 9.45-42W
  • Input voltage 198–264Vac
  • Output voltage 9-42Vdc
  • Efficiency 90%

Our vote:

  • Reliability
  • Price
  • Features
  • [[voto1]It seems like you forgot to provide the text you want to be translated. Please provide the Italian text.
  • [[voto2]It seems like you forgot to provide the text you want to be translated. Please provide the Italian text.
  • [[voto3]It seems like you forgot to provide the text you want to be translated. Please provide the Italian text.

Main technical specifications

MODEL LF-BDD040-1050-42
Type of exit Constant Current
Output voltage 9~42VDC
Nominal Output Current 500-1050mA (adjustable via DALI or NFC)
Power (Nominal) 9.45-42W
Dimmable DALI-2, PUSH
Max Efficiency

90%
Input Voltage VAC 198-264 VAC
PFC NO
Dimensions 97x43x30mm

See also:

Download the LED power supply catalogs in the attachments tab.

Attachments

LF-BDD040-1050-42 Datasheet

file_download Download (1.2MB)

Data sheet
LiFUD
LF-BDD040-1050-42
New
7438645978737
Output Regulation Type
Constant Current / CC
Input Voltage VAC
198-264VAC
198-264VAC
Rating
453
Output Voltage Range
9-42
Power W
9-13
PFC
No
IP Protection Grade
IP20
Warranty
5 Years
Mechanical Mounting Format
Closed Plastic Container
Efficiency
90%
Dimensions
96mm x 36mm x 24mm
Output Current mA
500
550
600
650
700
750
800
850
900
1000
1050
Output Current A
0.5
0.6
0.7
0.8
0.9
1
1.05
Input Connector
At Speed
Cable
Output Connection
At Speed
Wired
Isolation Class
Class 2
Certifications
ENEC
It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
It seems like "TUV" is not a word in Italian, and it does not provide any context to translate. Could you please provide more context or check if there might be a typo?
RoHS
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UKCA
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
I'm sorry, but the text you provided ("LF") is too short and lacks context for a meaningful translation. Could you please provide more information or a longer text?
