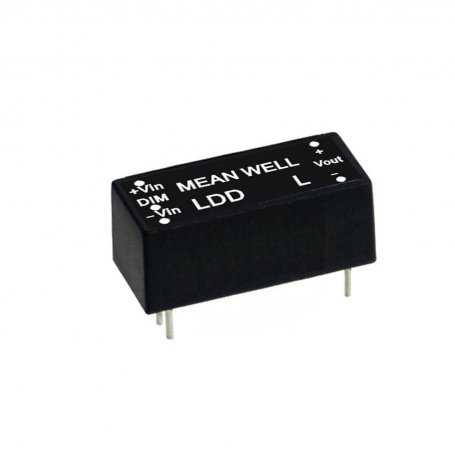

The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci
LDD-500LS - Meanwell - DC-DC Converter - 16W 500mA - Input 12VDC/24VDC
Description
End-Of-Life Product, contact us for an alternative!
- MeanWell LED Converter
- Constant Current DC
- Input Voltage: 9~36Vdc
- Power: 16W
- Output Voltage Range DC: 2~32Vdc
- Output current: 500mA
- Connector: SMD
- MeanWell LED Power Supply
- Constant Current DC
- Input Voltage: 9~36Vdc
- Power: 16W
- Output Voltage Range DC: 2~32Vdc
- Output Current: 500mA
- PWM Dimming and ON/OFF remote control
- Protections: Short Circuit / Overtemperature
- IP67
- Compact body
- Dimensions: 22.6 x 9.9 x 8.9 mm
- Designed for LED Lighting
- Warranty: 3 years
Data sheet
- Dimming LED
- PWM
- Input VDC (Nominal)
- 12
24 - Output Regulation Type
- Constant Current / CC
- Input Voltage VDC (Range)
- 9~36VDC
- Operating Temperature
- -40°C / +85°C
- Power W
- 16
- IP Protection Grade
- IP65
- Mechanical Mounting Format
- Printed Circuit Board - PCB
- Efficiency
- 95%
- Dimensions
- 22.6 x 9.9 x 8.9 mm
- Output Current mA
- 500
- Output Current A
- 0.5
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Product Family
- "LDD"
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- ON REQUEST
- MKP
- NO
- TK-CODE
- 0/0. [0.0.NO.]/LTT-ON REQUEST
- List Price
- 6.8
- Input Current
- 500mA
