The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci

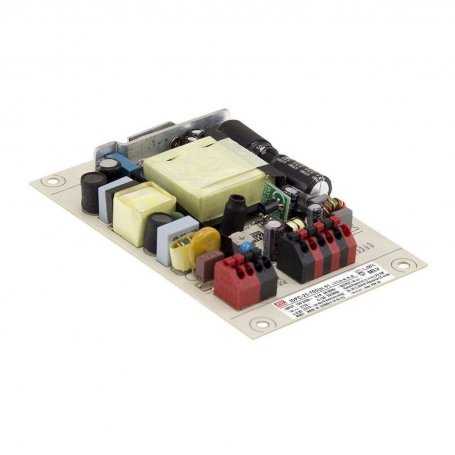

IDPC-25A-500 MeanWell Power Supply - CC - 25W 500mA
Description
End-Of-Life Product, replaced by PLP-30
- MeanWell Power Supply
- Constant Current CC
- Power: 25W
- Input: 90~295VAC
- DC Output Voltage: 35~50Vdc
- Output Current: 500mA
- Dimming 2 in 1 (0~10Vdc & 10V PWM)
- Auxiliary Output: 12Vdc 50mA
- MeanWell Power Supply
- Constant Current CC
- Power: 25W
- Input: 90~295VAC
- Output DC Voltage: 35~50Vdc
- Output Current: 500mA
- Dimming 2 in 1 (0~10Vdc & 10V PWM)
- Auxiliary Output: 12Vdc 50mA
- Size: 114.5 X 72.5 X 20 mm
- Open Frame
- Built-in active PFC
- Warranty: 3 years
Data sheet
- Dimming LED
- 0/10V
PWM - Output Regulation Type
- Constant Current / CC
- Input Voltage VAC
- 90~295VAC
90~295VAC - Power W
- 25
- PFC
- Yes
- IP Protection Grade
- IP20
- Warranty
- 3 Years
- Mechanical Mounting Format
- Open Frame
- Efficiency
- 81.5%
- Dimensions
- 114.5 X 72.5 X 20 mm
- Output Current mA
- 500
- Output Current A
- 0.5
- Isolation Class
- Class 2
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- IDPC
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- ON REQUEST
- MKP
- NO
- TK-CODE
- 0/0. [0.0.NO.]/LTT-ON REQUEST
- List Price
- 23.0
