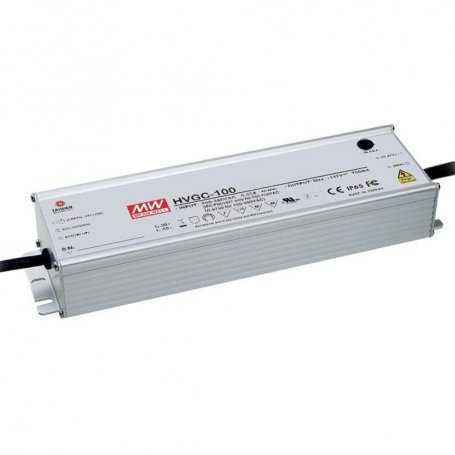

The product image may slightly differ as it is representative of the family and not the model.
HVGC-100 Meanwell LED Power Supply 100W Constant Current DC Currents 350mA 700mA
Power supplies for Led Mean Well series HVGC-100 Dimmable, power 100Watt, output currents 350mA, 700mA
LED power supplies for Mean Well from the HVGC-100 series are entry-level products, with a 5-year warranty, protected by a sturdy metal structure.
The HVGC-100 series has a constant current and high voltage output mode, it has a voltage input range from 180-528VAC and offers models with nominal currents ranging from 350mA to 700mA.
The design of the metal housing and the level of IP67 / IP65 protection allows this series to adapt to both indoor and outdoor applications.
The HVGC-100 series is equipped with various function options, such as dimming methodologies, in order to provide optimal design flexibility for the LED lighting system.
Features:
- MeanWell LED Power Supply
- Constant Current CC Output mode
- Metal housing with class I design
- IP67 / IP65 degree of protection for indoor or outdoor installations
- Typical lifespan>50000 hours
- Built-in active PFC function
- Function options: adjustable output via potentiometer; 3 in 1 Dimming (dim-to-off); Timer dimming
- Protections from: short circuit, over voltage and over temperature
- Dimensions: 236x68x38.8mm
- Warranty: 5 years
Applications:
- LED street lighting
- LED lighting
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | HVGC-100-350 | HVGC-100-700 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type of output | Constant Current / CC | ||||||||||||||||||||||||
| Nominal output current | 350mA | 350mA | |||||||||||||||||||||||
| Power (Nominal) | 99.75W | 99.4W | |||||||||||||||||||||||
| Efficiency | 91% | 91% | |||||||||||||||||||||||
| Input voltage range | 180 ~ 528VAC | ||||||||||||||||||||||||
| Type A | Io adjustable via integrated potentiometer | ||||||||||||||||||||||||
| Type B | 3 in 1 dimming function (0-10 VDC signal and resistance, 10V PWM) | ||||||||||||||||||||||||
| Type AB | Io adjustable via built-in 3 in 1 dimming function (0-10VDC signal and resistance, 10V PWM) | ||||||||||||||||||||||||
| Type D | Timer dimming | ||||||||||||||||||||||||
| Dimmable | YES | ||||||||||||||||||||||||
| Operating temperature |
-40 ~ +80 °C |
||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||
| Dimensions | 236x68x38.8mm | ||||||||||||||||||||||||
| Protection Degree | IP67 / IP65 | ||||||||||||||||||||||||
| Certifications | CE, CB, EAC, FCC | ||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
- Output Regulation Type
- Constant Current / CC
- Input Voltage VAC
- 190~528VAC
190~528VAC - Operating Temperature
- -40°C / +90°C
- Rating
- 453
- Power W
- 100
- PFC
- Yes
- IP Protection Grade
- IP65
IP67 - Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Metal Container
- Efficiency
- 91%
- Dimensions
- 236x68x38.8mm
- Output Current mA
- 350
700 - Output Current A
- 0.7
0.35 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 1
- Certifications
- FCC
