The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci

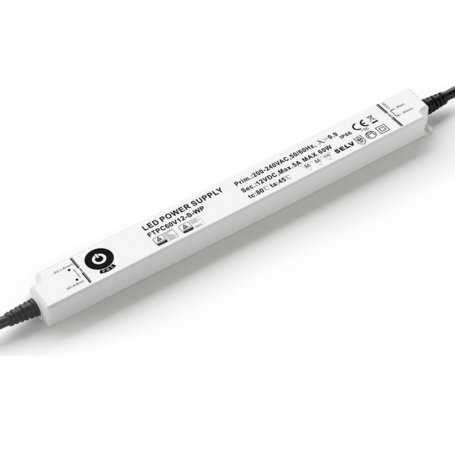

FTPC60V-S-WP POS Power LED Power Supply 60W Constant Voltage CV IP66 Voltages 12V 24V
Description
Power supplies for Led POS Power FTPC60V-S-WP series, 60Watt power, output voltages 12V, 24V
The LED power supplies POS Power from the FTPC60V-S-WP series are entry-level products, whose compact plastic structure makes them suitable even in applications where space is an issue.
The FTPC60V-S-WP series has a constant voltage output mode and a high voltage, it has an input voltage range from 180 ~ 264VAC and offers models with output voltages ranging from 12V to 24V.
The FTPC series is characterized by an ultra-low profile design, which allows it to be installed in tight spaces.
Features:
- LED Power Supply POS Power
- CV Constant Voltage Output Mode
- AC Input
- Protection degree IP66
- Protections from: short circuit, overload, over temperature, over voltage
- Cooling by free air convection
- Working temperature: -20°C ÷ 45°C
- Suitable for use in dry and humid places
- Compliance with global lighting regulations
- Dimensions: 339x30x18mm
Applications:
- LED Street Lighting
- LED Lighting
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | FTPC60V12-S-WP | FTPC60V24-S-WP | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output type | Constant Voltage / CV | ||||||||||||||||||||||||
| Output voltage | 12V | 24V | |||||||||||||||||||||||
| Nominal output current | 5A | 2.5A | |||||||||||||||||||||||
| Efficiency | 90% | ||||||||||||||||||||||||
| Power | 60W | ||||||||||||||||||||||||
| Input voltage range | 180 ~ 264VAC | ||||||||||||||||||||||||
| Dimmable | NO | ||||||||||||||||||||||||
| Working temperature | -20°C ÷ 45°C | ||||||||||||||||||||||||
| Protection Grade | IP66 | ||||||||||||||||||||||||
| PFC | NO | ||||||||||||||||||||||||
| Dimensions | 339x30x18mm | ||||||||||||||||||||||||
| Certifications | CE | ||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24 - Input Voltage VAC
- 180~264VAC
200~240VAC - Operating Temperature
- -4°F / 113°F
- Rating
- 453
- Power W
- 60
- PFC
- No
- Output Voltage Nr.
- 1
- IP Protection Grade
- IP66
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 90%
- Dimensions
- 339x30x18mm
- Output Current mA
- 2500
5000 - Output Current A
- 2.5
5 - Input Connector
- Cable
- Output Connection
- Wired
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Product Family
- FTPC
