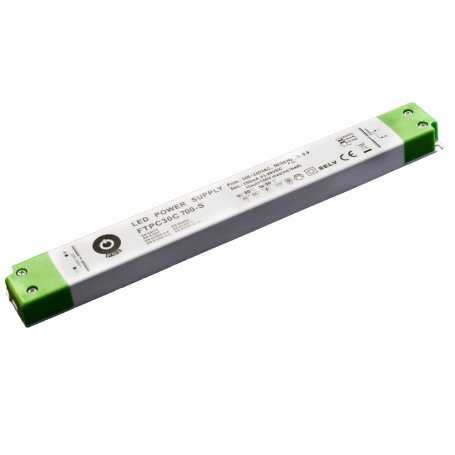

The product image may slightly differ as it is representative of the family and not the model.
FTPC30C-S POS Power LED Power Supply 30W Constant Current DC Currents 350mA 500mA 700mA 1050mA 1400mA
Power supplies for Led POS Power FTPC30C-S series, 30Watt power, output currents 350mA, 500mA, 700mA, 1050mA and 1400mA
The POS Power LED power supplies of the FTPC30C-S series are entry-level products with a 3-year warranty, whose compact plastic structure makes them suitable even in applications where space is a problem. They are perfect for installation behind mirrors and cabinets, also thanks to the certification for direct contact with wood.
The FTPC30C-S series has a constant current output mode and high voltage, it has an input voltage range of 200 ~ 240VAC and offers models with output currents of 350mA, 500mA, 700mA, 1050mA and 1400mA.
The FTPC series is characterized by an ultra-low profile design, which allows it to be installed in tight spaces.
Features:
- POS Power LED power supply
- Output in Constant Current CC mode
- AC input
- Insulation class II
- Active PFC
- Protections from: short circuit
- Extremely short and thin case dimensions
- Free air convection cooling
- Operating temperature: -20°C ~ +50°C
- Compliance with global lighting regulations
- 3 years warranty
- Dimensions: 251x30x16mm
Applications:
- LED street lighting
- LED lighting
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | FTPC30C350-S | FTPC30C500-S | FTPC30C700-S | FTPC30C1050-S | FTPC30C1050-S | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output type | Constant Current / CC | |||||||||||||||||||||||||||
| Nominal output current | 350mA | 500mA | 700mA | 1050mA | 1400mA | |||||||||||||||||||||||
| Efficiency | 85% | |||||||||||||||||||||||||||
| No DC output voltage | 102VDC | 75VDC | 55VDC | 35VDC | 30VDC | |||||||||||||||||||||||
| Power | 30.1W | 30W | 30.1W | 30.45W | 30.8W | |||||||||||||||||||||||
| Output voltage range | 43 ~ 86VDC | 30 ~ 60VDC | 21~ 43VDC | 14~ 29VDC | 11 ~ 22VDC | |||||||||||||||||||||||
| Input voltage range | 180 ~ 264VAC | |||||||||||||||||||||||||||
| AC input current (typ.) | 0.25A / 230VAC | |||||||||||||||||||||||||||
| Dimmable | NO | |||||||||||||||||||||||||||
| Operating temperature | -20°C ~ 50°C | |||||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||||
| Dimensions | 251x30x16mm | |||||||||||||||||||||||||||
| Certifications | CE | |||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
- Output Regulation Type
- Constant Voltage / CV
- Input Voltage VAC
- 180~264VAC
200~240VAC - Operating Temperature
- -4°F / +122°F
- Rating
- 453
- Power W
- 30
- PFC
- YES
- Output Voltage Nr.
- 1
- Warranty
- 3 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 85%
- Dimensions
- 251x30x16mm
- Output Current mA
- 350
500
700
1050
1400 - Output Current A
- 0.5
0.7
0.35
1.05
1.4 - Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 2
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Product Family
- FTPC
