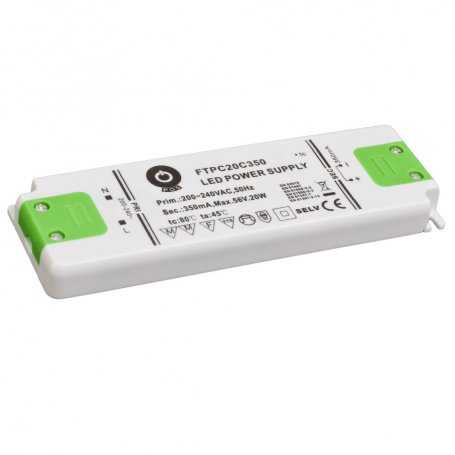

The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci
FTPC20C POS Power LED Power Supply 20W Constant Current DC Currents 350mA 700mA
Description
Power supplies for Led POS Power FTPC20C series, 20Watt power, output currents 350mA and 700mA
The LED power supplies POS Power of the FTPC20C series are entry level products, whose compact plastic structure makes them suitable even in applications where space is a problem.
The FTPC20C series has a high voltage and constant current output mode, has an input voltage range from 180 ~ 264VAC and offers models with output currents of 350mA and 700mA
The FTPC series is characterized by an ultra-low profile design, which allows it to be installed in tight spaces.
Features:
- LED power supply POS Power
- Constant Current DC Output Mode
- AC Input
- Class II insulation
- Protections from: short circuit, overtemperature
- Free air convection cooling
- Operating temperature: -20°C ~ +45°C
- Compliance with global lighting standards
- Dimensions: 159x58x18mm
Applications:
- LED street lighting
- LED lighting
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | FTPC20C350 | FTPC20C700 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output type | Constant Current / DC | ||||||||||||||||||||||||
| Nominal output current | 350mA | 700mA | |||||||||||||||||||||||
| Efficiency | 83% | 80% | |||||||||||||||||||||||
| Power | 19.6W | 20.3W | |||||||||||||||||||||||
| No-load output voltage (max.) | 60VDC | 32VDC | |||||||||||||||||||||||
| Output voltage range | 30~ 56VDC | 14~ 29VDC | |||||||||||||||||||||||
| Input voltage range | 180 ~ 264VAC | ||||||||||||||||||||||||
| AC input current (tip.) | 0.3A / 230VAC | ||||||||||||||||||||||||
| Dimmable | NO | ||||||||||||||||||||||||
| Operating temperature | -20°C ÷ 45°C | ||||||||||||||||||||||||
| PFC | NO | ||||||||||||||||||||||||
| Dimensions | 159x58x18mm | ||||||||||||||||||||||||
| Certifications | CE | ||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Input Voltage VAC
- 180~264VAC
200~240VAC - Operating Temperature
- -4°F / 113°F
- Rating
- 453
- Power W
- 20
- PFC
- No
- Output Voltage Nr.
- 1
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 83%
- Dimensions
- 159x58x18mm
- Output Current mA
- 350
700 - Output Current A
- 0.7
0.35 - Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 2
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Product Family
- FTPC
