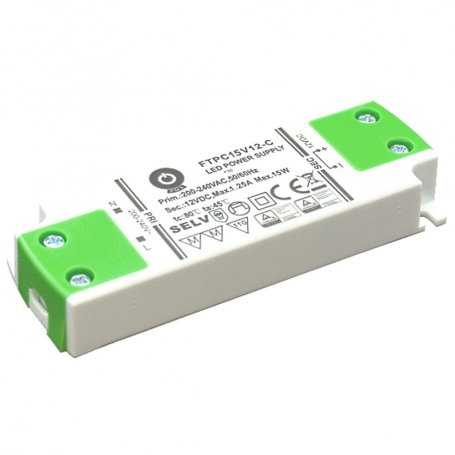

The product image may slightly differ as it is representative of the family and not the model.
FTPC15V-C LED POS Power 15W Power Supply - Constant Voltage CV - Slim
Description
Power supplies for Led POS Power FTPC15V-C series, power 15 Watt in output voltages 12V and 24V
The POS Power LED drivers of the FTPC series are entry level products, with a 5-year warranty, whose compact plastic structure makes them suitable even in applications where space is a problem. They are perfect for installation behind mirrors and cabinets, also thanks to the certification for direct contact with wood.
FTCP15V12-C and FTCP15V24-C are perfect for powering spotlights or LED strips low power (up to 15 Watt) at constant voltage.
Main features:
- Economical and reliable
- Thickness 16.5mm
- Plastic enclosure
- Safe: equipped with protections against overvoltage, short circuit and overload
- Class 2 insulation (without ground)
- Installable directly on wood
- Perfect for installation in standard boxes or outdoors
- Silent: No fans
- Warranty 5 Years
- Efficiency up to 85%
- Constant Voltage / CV
- Input:
- Certifications: This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Dimensions: 103x35x16 mm
Applications:
- Powering cameras
- LED strips
- LED lighting power supply
- LED module lighting for signs
- LED display
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | FTPC15V12-C | FTPC15V24-C |
|---|---|---|
| Output type | Constant Voltage / CV | |
| Output voltage | 12V | 24V |
| Nominal output current | 1.25A | 0.625A |
| Power (Nominal) | 15 Watt | |
| Dimmable | NO | |
| Max efficiency | 85% | |
| Input voltage VAC | ||
| PFC | NO | |
| Dimensions | 103x35x16 mm | |
See also:
Download the catalogs of LED power supplies in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24 - Input Voltage VAC
- 190~264VAC
190~264VAC - Rating
- 453
- Power W
- 15
- PFC
- No
- IP Protection Grade
- IP20
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 85%
- Dimensions
- 103x35x16 mm
- Output Current mA
- 625
1250 - Output Current A
- 0.625
1.25 - Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 2
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 220
- Product Family
- FTPC
- TK-CODE
- 167/42. [0.0.NO.500]/LTT-1
279/154. [0.0.NO.500]/LTT-1
