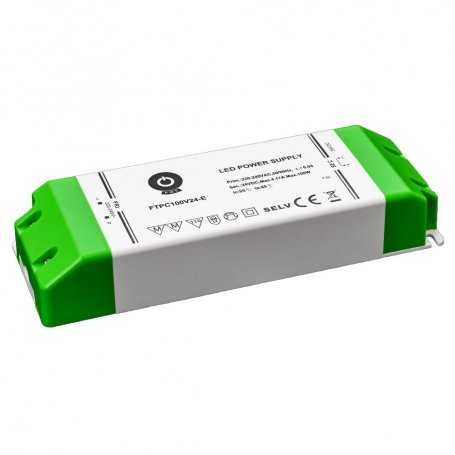

The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci
FTPC100V-E POS Power LED Power Supply 100W Constant Voltage CV Voltages 12V 24V
Description
Power supplies for Led POS Power FTPC100V-E series, 100Watt power, output voltages 12V, 24V
The LED power supplies for POS Power of the FTPC100V-E series are protected by a sturdy plastic structure.
The FTPC100V-E series has a constant voltage output mode and high voltage, it has an input voltage range from 200 ~ 240VAC and offers models with output voltages between 12V and 24V.
The FTPC series is characterized by an ultra-low profile design, which allows it to be installed in tight spaces.
Features:
- LED power supply POS Power
- Output in Constant Voltage CV mode
- AC input
- Protections from: short circuit, overload, over temperature, over voltage
- Free air convection cooling
- Operating temperature: -20°C ÷ 45°C
- 2 years warranty
- Dimensions: 179.4x62.5x30.6mm
Applications:
- LED street lighting
- LED lighting
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | FTPC100V12-E | FTPC100V24-E | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output type | Constant Voltage / CV | ||||||||||||||||||||||||
| Output voltage | 12V | 24V | |||||||||||||||||||||||
| Nominal output current | 8.33A | 4.17A | |||||||||||||||||||||||
| Efficiency | 88% | 90% | |||||||||||||||||||||||
| Power | 100W | ||||||||||||||||||||||||
| Input voltage range | 200 ~ 240VAC | ||||||||||||||||||||||||
| Dimmable | NO | ||||||||||||||||||||||||
| Operating temperature | -20°C ÷ 45°C | ||||||||||||||||||||||||
| PFC | NO | ||||||||||||||||||||||||
| Dimensions | 179.4x62.5x30.6mm | ||||||||||||||||||||||||
| Certifications | CE | ||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24 - Input Voltage VAC
- 200~240VAC
200~240VAC - Operating Temperature
- -4°F / 113°F
- Rating
- 453
- Power W
- 100
- PFC
- No
- Output Voltage Nr.
- 1
- IP Protection Grade
- IP20
- Warranty
- 2 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 90%
- Dimensions
- 179.4x62.5x30.6mm
- Output Current mA
- 4170
8330 - Output Current A
- 4.17
8.33 - Input Connector
- At Speed
- Output Connection
- At Speed
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Product Family
- FTPC
