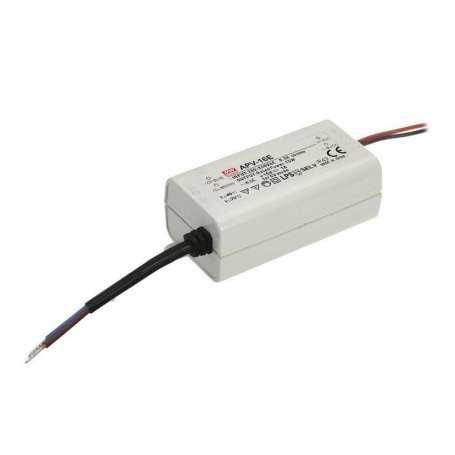

The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci
APV-16E MeanWell LED Power Supply 16W Constant Voltage CV IP42 Voltages 5V 12V 15V 24V
Description
End-Of-Life Model, replaced by APV-16
Power supplies for Led Mean Well APV-16E series, 16 Watt power in output voltages 5V, 12V, 15V, 24V
The LED power supplies from Mean Well in the APV-16E series are entry-level products, with a 2-year warranty, protected by a sturdy plastic structure and have an IP42 certification.
Features:
- Economical and reliable
- Plastic container
- IP42 protection
- Supplied pre-wired with both input and output power cables.
- Safe: equipped with overvoltage and overload protections
- Class 2 insulation (without ground)
- Fully insulated plastic case
- Quiet: No fans
- 2-year Warranty
- Efficiency up to 82%
- Constant Voltage / CV
- Input: 180 ~ 264VAC, 254 ~ 370VDC
- Certifications: UL, CE
- Dimensions: 77x40x29 mm
Applications:
- Powering video cameras
- LED strips
- Powering LED spotlights
- Powering LED modules for signs
- LED display
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main Technical Specifications
| MODEL | APV-16E-5 | APV-16E-12 | APV-16E-15 | APV-16E-24 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Type | Constant Voltage / CV | ||||||||||||||||||||||||||
| Output Voltage | 5V | 12V | 15V | 24V | |||||||||||||||||||||||
| Nominal Output Current | 2.6A | 1.25A | 1A | 0.67A | |||||||||||||||||||||||
| Output Current Range | 0 ~ 2.6A | 0 ~ 1.25A | 0 ~ 1A | 0 ~ 0.67A | |||||||||||||||||||||||
| Power (Nominal) | 13W | 15W | 15W | 16.08W | |||||||||||||||||||||||
| AC Input Current | 0.3A/230VAC | ||||||||||||||||||||||||||
| Input Current | Cold start 50A | ||||||||||||||||||||||||||
| Input Leakage Current | 0.25mA / 240VAC | ||||||||||||||||||||||||||
| Dimmable | NO | ||||||||||||||||||||||||||
| Max Efficiency | 75% | 79% | 80% | 82% | |||||||||||||||||||||||
| Input Voltage VAC | 180 ~ 264VAC, 254 ~ 370VDC | ||||||||||||||||||||||||||
| PFC | NO | ||||||||||||||||||||||||||
| Dimensions | 77x40x29 mm | ||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||
See also:
- The entire Mean Well APV and APC series
- All LED power supplies by Mean Well
- All LED power supplies on Alimentatorishop
- Meanwell APV-16 LED Power Supply
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 5
12
15
24 - Input Voltage VAC
- 190~264VAC
190~264VAC
254 ~ 370VDC
254 ~ 370VDC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 16
- PFC
- No
- IP Protection Grade
- IP42
- Warranty
- 2 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 82%
- Dimensions
- 77x40x29 mm
- Output Current A
- 0.67
1
1.25
2.6 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- "APV" does not provide enough context for a direct translation. It could be an acronym or abbreviation that depends on the specific context in which it is used. Could you please provide more information or context?
