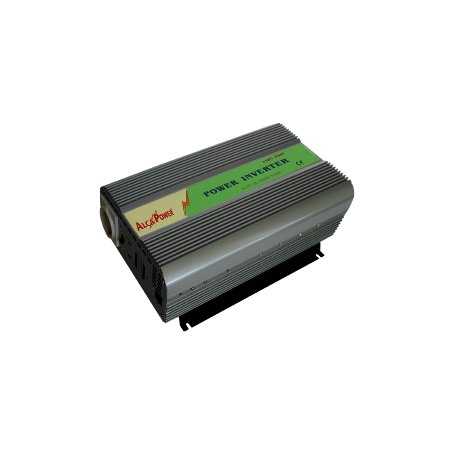

AP12-3000WP AP12-3000WP - Inverter Alcapower 3000W - In 12V Out 220 VAC Onda Sinusoidale Modificata Alcapower
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

AP12-3000WP - Alcapower - Modified Sinusoidal Wave Inverter 3000W - In 12V Out 220 VAC

€303.03 Tax excluded

€303.03 Tax excluded

block Non disponibile - contattaci
Quantity Price
1-4 €303.03
5-9 €296.97
10-19 €290.91
20 + €284.85
Reference AP12-3000WP
Description
  • Inverter ALCAPOWER AP12-3000WP
  • DC Input: 10~15Vdc
  • Power: 3000W
    Maximum Power: 6000W
  • Frequency: 50Hz
  • Output: 230VAC

OBSOLETE

Replaced by IRS3000-12

  • Inverter ALCAPOWER AP12-3000WP
  • DC Input: 10~15Vdc
  • Power: 3000W
    Maximum Power: 6000W
  • Frequency: 50Hz
  • Output: 230VAC
  • Idle Consumption: < 3A
  • Idle Current: < 3A
  • Output Socket: 2 schuko
  • Protections: Overload
  • Alarm and automatic shutdown for overvoltage and low battery
  • Dimensions: 395 x 236 x 92 mm
  • Connection cables NOT included

Modified Sine Wave Inverter with Soft Start

Converts the 12Vdc DC Voltage of the battery into 230V AC Alternating Voltage.

It can be used in cars, boats, campers and photovoltaic systems.
Wherever the domestic power grid is not available, it can be obtained using an Inverter.

The modified sine wave form is a stepped form, designed to have a waveform almost similar to the pure sine wave of the domestic power line.
This type of wave is suitable for supplying the energy needed for most electrical and electronic applications and equipment such as incandescent lamps, radios, computers and notebooks, televisions, video recorders, video games, microwave ovens, etc.

The modified sine wave is definitely better than the square wave provided by other types of inverters on the market.

Thanks to the new Soft-Start technology used by the latest generation of inverters, the internal circuit of the inverter, before providing output voltage, checks the load connected to it, and only if the required power and the type of load are suitable, the 220V AC output is enabled.
This control operation takes about 10 seconds, after which the output voltage is increased according to a ramp graph from 0V to 220V quickly. In this way, current surges that could cause damage to the inverter and electrical disturbances in the line are avoided.
The Soft-Start technology is essential when using inductive loads (refrigerators, power tools or electric motors in general) which, at the starting moment, require a high current.

Data sheet
Alcapower
AP12-3000WP
New
8055323212809
Input VDC (Nominal)
12
Output Voltage VAC
220 VAC
Input Voltage VDC (Range)
Input Voltage Volt
12
Power W
3000
PFC
No
Net Weight
4.7 kg
Parallelizable
No
Sinusoidal Waveform
Modified Square Wave
Output Voltage Nr.
1
Warranty
1 Year
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
90%
Dimensions
395 x 236 x 92 mm
Input Connector
Cable/Plug
Output Connection
Cable/Plug
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
Industrial Automation
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
NO
TK-CODE
0/0. [0.0.NO.0]/LTT-ON REQUEST
List Price
432.9
