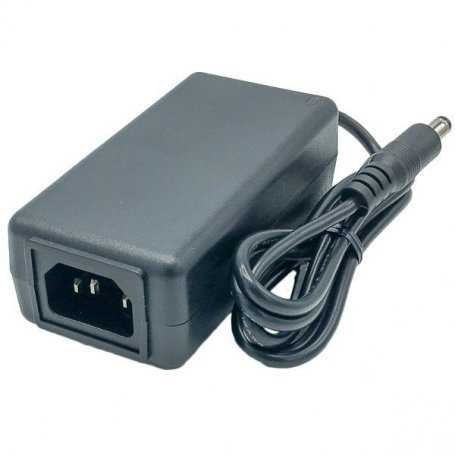

The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci
Description
Desktop power supplies Phihong PPL series36, power 36 Watt in output voltages 5V, 7.5V, 8.5V, 9V, 12V, 13.5V, 15V, 16V, 18V, 24V and 48V
The Phihong DESKTOP PPL36 power supplies are highly reliable products certified worldwide, ideal for consumer electronics, networking, and all kinds of peripherals.
Main features:
- Maximum reliability
- DOE level VI certification
- Plastic case without ventilation, splash-proof
- Standard output connector 5.5 x 2.1 x 10mm center positive
- Safe: equipped with protections against overvoltage, short circuit, and overload
- Available with and without ground [[class]]
- No-load consumption <0.054W
- ErP/Ecodesign Directive 2009/125/EC
- Regulation EU 2019/1782 Compliant
- EU CoC Tier 2 Compliant (except 12V models)
- EN 55024/CISPR 24
- Class B EMI
- Input: [[input]]
- Certifications: EN62368 This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. UL
- Dimensions: [[dimensions]]
Applications:
- Networking
- On-board computers and peripherals
- Consumer electronics
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
Main technical specifications
| MODEL | PPL36x-050 | PPL36x-120L6 | PPL36x-240 | PPL36x-480 |
|---|---|---|---|---|
| Output voltage | 5V | 12V | 24V | 48V |
| Rated Output Current | 5A | 3A | 1.5A |
0.75A |
| Efficiency | 86.4% | 87.9% | 89.3% | 89.8% |
| Power (Rated) | 36 Watt | |||
| Dimmable | NO | |||
| Input Voltage VAC | ||||
| Input Connector | C8, C14 | |||
| PFC | NO | |||
| Dimensions | 100x50x33 mm | |||
Refer to the datasheet for more details and technical specifications of models not listed in the table.
See also:
Download the Desktop Power Supply Catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 5
7.5
8.5
9
12
13.5
15
16
18
24
48 - Input Voltage VAC
- 100~240VAC
100~240VAC - Operating Temperature
- 0°C / +40°C
- Rating
- 545
- Power W
- 36
- PFC
- No
- IP Protection Grade
- Nobody
- Mechanical Mounting Format
- Desktop
- Dimensions
- 100x50x33 mm
- Output Current mA
- 750
1500
2000
2250
2400
2660
3000
3340
3500
4000
5000 - Output Current A
- 0.75
1.5
2
2.4
2.25
2.66
3
3.5
3.34
4
5 - Input Connector
- C8
C14 - Output Connection
- 5.5x2.1
- Isolation Class
- Class 1
Class 2 - Certifications
- EN62368
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Networking
Security - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- PPL is an abbreviation that can stand for several things, depending on the context. Could you please provide more information or context for a more accurate translation?
- TK-CODE
- 0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
6/0. [0.0.NO.24]/LTT-15
