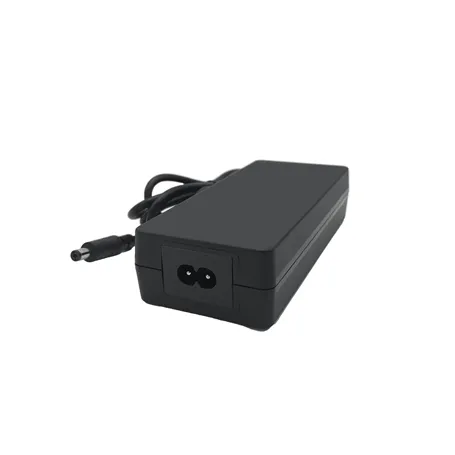

The product image may slightly differ as it is representative of the family and not the model.
AA90W - Power supply Phihong - Wallmount 90W - Input 100-240 VAC - C8 Connector
Available voltages: 12V, 19V, 24V, 48V, 54V
The AA90 series single-output desktop AC/DC adapters, with output voltages from 12VDC to 54VDC, provide a 90 watt output. Using a long output cable from 1.200mm to 1.500mm, These high-efficiency power supplies are equipped with a C8 input. They comply with the Level VII efficiency limits and the stricter no-load consumption limits proposed by the United States Department of Energy in February 2023, as well as those of the European Voluntary Code of Conduct Version 5 Tier 2.
Approved to operate up to +40 degrees C without derating and up to an altitude of 5,000 meters, the AA90x series adapters meet the electrostatic discharge (ESD) levels of ± 8kV for contact discharges and ± 15kV for air discharges, Class B emission limits and have UL, CE, UKCA, FCC, CAN ICES-3(B) and NRCan conformity approvals. These convenient and high-performance adapters are suitable for use in a wide range of consumer, business and industrial applications.
Main technical specifications
| MODEL | AA90W-120B-R | AA90W-190B-R | AA90W-240B-R | AA90W-480B-R | AA90W-540B-R |
|---|---|---|---|---|---|
| Output voltage | 12V | 19V | 24V | 48V | 54V |
| Nominal Output Current | 7.5A | 4.7A |
3.75A |
1.85A |
1.67A |
| Power (Nominal) | 90W | ||||
| Max Efficiency | 89% | 91% | 91% | 91% | 91% |
| Input Voltage VAC | 90 to 264VAC | ||||
| Input connector | C8 |
||||
| Dimensions | 141.5mm x 62.5mm x 33.0mm | ||||
- Output Voltage VDC
- 12
19
24
48
54 - Input Voltage VAC
- 90 ~ 264VAC
90 ~ 264VAC - Operating Temperature
- -10°C / +60°C
- Power W
- 90
- PFC
- No
- Output Voltage Nr.
- 1
- IP Protection Grade
- IP20
- Warranty
- 1 Year
- Mechanical Mounting Format
- Desktop
- Efficiency Level
- VII
- Dimensions
- 141.5 x 62.5 x 33 mm
- Output Current mA
- 1660
1875
3750
4740
7500 - Output Current A
- 1.67
1.875
3.75
4.74
7.5 - Input Connector
- C8
- Output Connection
- 5.5x2.1
- Colour
- Black
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UKCA
UL - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- AA90
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- ON REQUEST
- MKP
- NO
