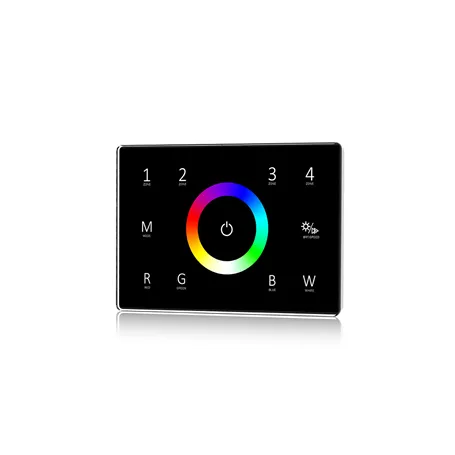

Relpower T14 - DMX512 Touch Panel for RGBW Control - Black
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

Relpower T14 - DMX512 Touch Panel for RGBW Control - Black

€43.33 Tax excluded

€43.33 Tax excluded

block Non disponibile - contattaci
Quantity Price
1-4 €43.33
5-9 €42.46
10-19 €41.60
20 + €40.73
Reference T14-IT-B
Description

The T14(IT) is a wall-mounted touch panel for RGBW control with DMX512 and RF 2.4GHz functionalities. It can operate both as a DMX512 master and as an RF remote control for Skydance LED controllers. It features an ultra-sensitive touch interface with a color wheel for precise color adjustment and backlit buttons.

Main features

  • 4-zone control: Each zone can manage multiple RF or DMX receivers.
  • DMX512 Compatibility: Standard signal compatible with all DMX512 decoders.
  • RF Mode: It functions as an RF remote control for Skydance LED controllers (2.4GHz).
  • Tempered glass touch interface: Resistant and sensitive to touch.
  • Precise color adjustment: Through a color wheel and dedicated controls.
  • Various dynamic lighting modes: 10 integrated modes with speed adjustment.
  • Available in white or black.

Technical specifications

  • Model: T14(IT)
  • Type of light supported: RGBW
  • Number of DMX channels: 16
  • Input voltage: 100-240VAC
  • Maximum current: 0.1A
  • Control interface: Touch + RF 2.4GHz
  • RF control distance: 10m (without obstacles)
  • Dimming levels: 256 levels, range 0-100%
  • Operating temperature: -30°C ~ +55°C
  • Degree of protection: IP20 (indoor use)
  • Dimensions: L135 x W100 x H58mm
  • Weight: 0.246 kg
  • Certifications: CE, RED, EN 55015, EN IEC 61547:2023, EN 55032, EN 55035
  • Warranty: 5 years

Advanced features

  • Zone management: Separate or synchronized control of the 4 zones.
  • Independent RGBW adjustment: Single control of red, green, blue, and white with dedicated buttons.
  • Customizable scenes: The ability to save colors and quickly recall them.
  • Compatibility with DMX decoder: Automatic assignment of DMX addresses for easy setup.
  • Intuitive RF matching: Two pairing modes with RF remote controls.

Dynamic modes available

  1. RGB Jump
  2. RGB Transition
  3. 6-color jump
  4. 6-color transition
  5. Yellow/cyan/violet transition
  6. RGB Fade
  7. Red fade
  8. Green fade
  9. Blue fade
  10. White fade

Connection diagram

  • DMX512 mode: Direct connection to DMX512 decoder for RGBW control with automatic address assignment.
  • RF Mode: Pairing with Skydance RF controllers for wireless control.

Applications

  • Architectural and decorative lighting
  • Lighting control for shops, restaurants, and showrooms
  • Scenic and theatrical installations
  • Home lighting with customizable scenarios
Attachments

T11-T12-T13-T14 Datasheet

file_download Download (1.65MB)

Data sheet
REL Power
T14-IT-B
Dimming LED
Sure, "DMX" is an abbreviation and does not need translation, as it is commonly known internationally, particularly in the context of entertainment and lighting technology.

If you need more context or additional text translated, please provide it!
Led Dimming (interface)
It seems like "Touch" is already in English. Could you please provide the Italian text that you want translated into English?
Type
LED Dimmer
Input Voltage VAC
100~240VAC
Input Voltage VDC (Range)
Number of Channels
4
