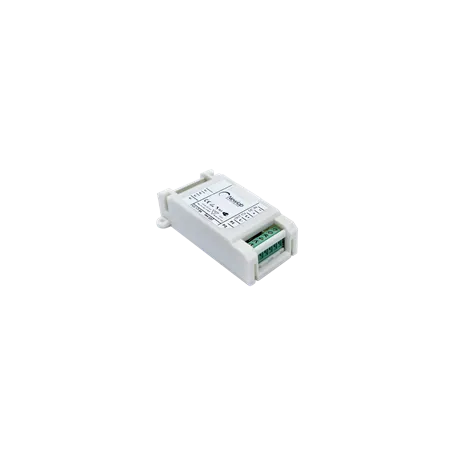

The product image may slightly differ as it is representative of the family and not the model.
L400MB04C1A01 L400MB 5 in 1 Led Dimmer - 350mA with 64 steps - push 0-10 1/10V DALI Potentiometer
L400MB
PUSH Dimmer 5 in 1
Power supply range: 8-53V DC.
PUSH input
Constant current PWM output
Qty and type of Control Inputs
• Dimmer with Push input (isolated/non-isolated)
• Output current: 350mA (default) programmable with 64 steps
• Correct power supply indication LED
• Output status indication LED
• Possibility of bench test through optional SET UPPER
• Maximum intensity function on double click and night light on prolonged pressure from off
• In-out terminals: 0.05÷1.5 mm2
(30÷15 AWG)
• Protection from: polarity reversal, short circuit, open circuit, voltage spikes, overtemperature
Technical features
• Dimmer with Push input (isolated/non-isolated)
• Output current: 350mA (default) programmable with 64 steps
• Correct power supply indication LED
• Output status indication LED
• Possibility of bench test via optional SET UPPER
• Maximum intensity function on double click and night light on prolonged pressure from off
• In-out terminals: 0.05÷1.5 mm2
(30÷15 AWG)
• Protection from: polarity reversal, short circuit, open circuit, voltage spikes, overheating
- Dimming LED
- 0/10V
1/10V
Dali
PWM
Resistor (Ohm) - Led Dimming (interface)
- 0/10V
1/10V
Dali
PWM
Push
Wired - Power Supply Type
- Constant Current / CC
- Type
- LED Dimmer
- Mechanical Mounting Format
- Closed Plastic Container
