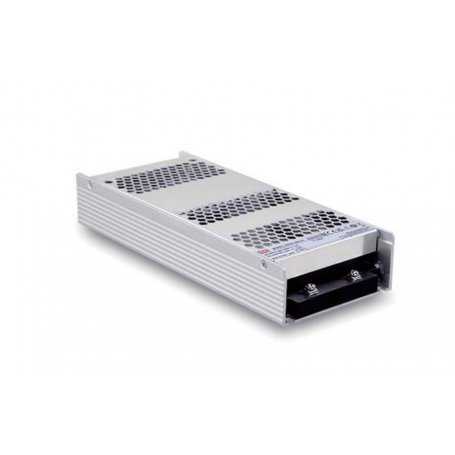

The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci
RSDH-300 - Mean Well - DC-DC Converter 300W - Voltages 12V, 24V, 32V, 48V
Description
Available models: RSDH-300-12, RSDH-300-24, RSDH-300-32, RSDH-300-48
The RSDH-300 series offers models of dc-dc converters with an ultrawide input range from 250-1500VDC. The operating temperature ranges from -40 to +80°C, 4KVac isolation voltage, operates up to an altitude of 5000m, high efficiency and low ripple & noise. Comes complete with all protections.
The RSDH-300 series is in compliance with BS EN/EN-61000-6-2 for industrial environments. Perfect for industrial automation, surveillance, telecommunications but also photovoltaic systems, wind power, centralized DC bus applications, ESS, railway sector and similar.
Features
- Ultrawide input range 6:1, 250-1500VDC
- 1700VDC peak input for 10 seconds
- 4KVac I/O isolation (reinforced)
- Protections: short circuit / overload / overvoltage / overtemperature / under voltage DC input / reverse polarity DC input
- Fanless design, half encapsulated, free air cooling
- Working temperature -40°C - +80°C
- Over voltage category II
- Altitude up to 5000m
- adjustable DC output (12-15V, 24-39V, 30-36V, 48-58V)
- 1U, 41mm
- 3 years warranty
Applications:
- Photovoltaic
- Renewable energy
- High voltage frequency conversion
- Industrial control systems
- Electromechanical devices
- Centralized DC Bus Applications
- Energy storage systems
Our vote:
- Reliability
- Price
- Features
- [[voto1]There is no text provided to translate. Please provide the text you want translated.
- [[voto2]There is no text provided to translate. Please provide the text you want translated.
- [[voto3]There is no text provided to translate. Please provide the text you want translated.
Main technical specifications
| MODEL | RSDH-300-12 | RSDH-300-24 | RSDH-300-32 | RSDH-300-48 |
|---|---|---|---|---|
| DC output voltage | 12V | 24V | 32V | 48V |
| Nominal Output Current | 20A | 12.5A | 9.37A | 6.25A |
| Nominal output power | 240W | 300W | 300W | 300W |
| Efficiency | 87% | 88% | 88% | 91% |
| Continuous input voltage range | 250 - 1500 VDC | |||
| Working temperature | -40 ~ +80℃ | |||
| Dimensions | 237*100*41mm | |||
| Certification | CE, CB, EAC | |||
| For purchases and sampling | CONTACT US | |||
See also:
Download the power supply catalogs in the attachments tab.
Discover more information about
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24
32
48 - Input Voltage VDC (Range)
- 250-1500VDC
- Operating Temperature
- -40°C / +80°C
- Rating
- 453
- Power W
- 300
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 87.0%
88%
91% - Dimensions
- 237*100*41mm
- Output Current mA
- 6250
9380
12500
20000 - Output Current A
- 6.25
9.33
12.5
20 - Input Connector
- At Speed
- Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
