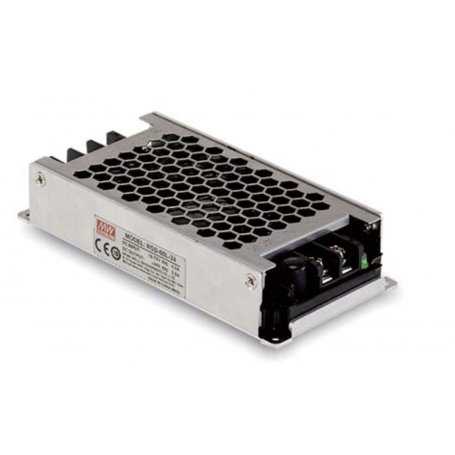

The product image may slightly differ as it is representative of the family and not the model.
RSD-60 - Mean Well - DC-DC Converter 60W - Voltages 3.3V, 5V, 12V, 24V
Description
Available models: RSD-60G-3.3, RSD-60G-5, RSD-60G-12, RSD-60G-24, RSD-60L-3.3, RSD-60L-5, RSD-60L-12, RSD-60L-24, RSD-60H-3.3, RSD-60H-5, RSD-60H-12, RSD-60H-24
The power supplies of theRSD-60 series Mean Well they are converters dc/dcin a sealed metal container with a 3-year warranty.
The power output is approximately 60W.
Features
- Compliant with BS EN/EN50155 and BS EN/EN45545-2 for the railway sector.
- Ultra compact and low profile 1U (25mm)
- Wide input range 4:1
- No minimum load required
- Protections: short circuit / overload / overvoltage / reverse polarity
- I/O Isolation 4000VDC
- Free air cooling
- Working temperature -40°C - +70°C
- LED power on indicator
- 3 years warranty
Applications:
- Bus, tram, metro and railways
- Wireless network
- Industrial applications
- IT - Information Technology
Our vote:
- Reliability
- Price
- Features
- [[voto1]There is no text provided to translate. Please provide the text you want translated.
- [[voto2]There is no text provided to translate. Please provide the text you want translated.
- [[voto3]There is no text provided to translate. Please provide the text you want translated.
Mechanical Features
Main technical specifications
| MODEL | RSD-60G-3.3 | RSD-60G-5 | RSD-60G-12 | RSD-60G-24 | RSD-60L-3.3 | RSD-60L-5 | RSD-60L-12 | RSD-60L-24 | RSD-60L-3.3 | RSD-60L-5 | RSD-60L-12 | RSD-60L-24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 3.3V | 5V | 12V | 24V | 3.3V | 5V | 12V | 24V | 3.3V | 5V | 12V | 24V |
| Nominal Output Current | 12A | 12A | 5A | 2.5A | 12A | 12A | 5A | 2.5A | 12A | 12A | 5A | 2.5A |
| Nominal output power | 39.6W | 60W | 60W | 60W | 39.6W | 60W | 60W | 60W | 39.6W | 60W | 60W | 60W |
| Efficiency | 86.5% | 88% | 92% | 90% | 88.5% | 89% | 93% | 91.5% | 87.5% | 89% | 92.5% | 91.5% |
| Continuous input voltage range | 9 ~ 36VDC | 18 ~ 72VDC | 40 ~ 160VDC | |||||||||
| DC input current | 4.8A/24V | |||||||||||
| Input surge current | 2.1A/24VDC | 3A/24VDC | 0.95A/48VDC | 1.5A/48VDC | 0.415A/110VDC | 0.62A/110V | ||||||
| Working temperature | -40 ~ +70℃ | |||||||||||
| Dimensions | 128*60*25mm | |||||||||||
| Certification | CE, CB, EAC | |||||||||||
| For purchases and sampling | CONTACT US | |||||||||||
See also:
Download the power supply catalogs in the attachments tab.
Discover more information about
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 3.3
5
12
24 - Input Voltage VDC (Range)
- 9~36VDC
18~72VDC
43~160VDC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 60
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 86.5%
87.5%
88%
88.5%
89%
90%
91.5%
92.0%
92.5%
93% - Dimensions
- 128*60*25mm
- Output Current mA
- 2500
5000
12000 - Output Current A
- 2.5
5
12 - Input Connector
- At Speed
- Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Product Family
- RSD
