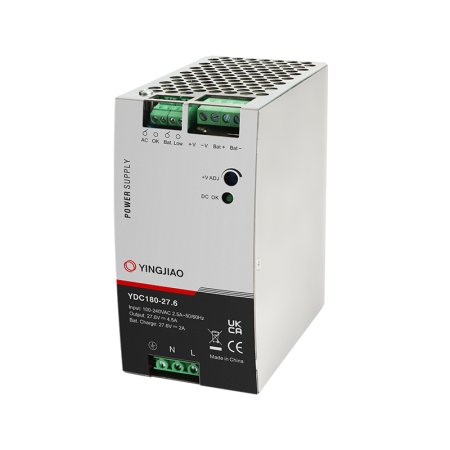

YDC180-27.6 – DIN rail power supply 27.6V 180W with battery charger
The YDC180-27.6 model from Yingjiao is a high-efficiency industrial power supply, designed for powering and charging 24V batteries, with DIN rail mounting. Ideal for video surveillance systems, UPS systems, automation, and industrial devices.
Description
-
Power supply with stabilized output at 27.6V DC and maximum power of 180W.
-
Supports universal input voltage 90–264VAC, with high efficiency up to 90%.
-
Includes integrated battery charger, status indicators (AC OK, battery low), and full protection for connected batteries and loads.
-
Designed for DIN TS-35 rail installation, with reliable screw connections.
-
Guaranteed operation from –20°C to +70°C, ideal for harsh industrial environments.
-
International safety certifications and EMC compliance.
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 27.6
- Input Voltage VAC
- 90~264VAC
- Operating Temperature
- -4°F / +158°F
- Power W
- 180
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 90%
- Dimensions
- Output Current mA
- 4500
- Output Current A
- 4.5
- Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 1
- Certifications
- It seems like "TUV" is not a word in Italian, and it does not provide any context to translate. Could you please provide more context or check if there might be a typo?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Input Voltage VAC (Nominal)
- 220
