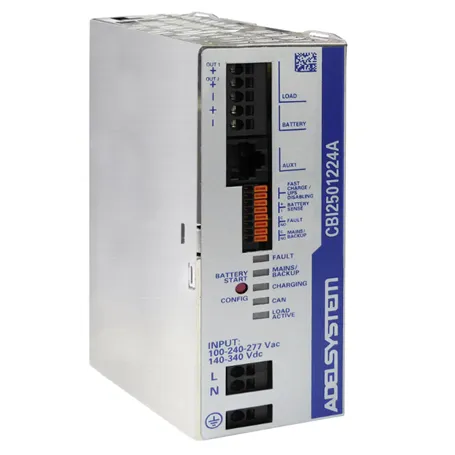

CBI2501224A DC UPS System Evolved Adelsystem 12V+24V - 10A All-In-One
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

CBI2501224A DC UPS System Evolved Adelsystem 12V+24V - 10A All-In-One

€301.00 Tax excluded

€301.00 Tax excluded

€301.00 Senza tasse €367.22 Con tasse
notifications_active Last items in stock

Order it before 12:00 and receive it on 10/28/26 with TNT Express

Quantity Price
1-4 €301.00
5-9 €294.98
10-19 €288.96
20 + €282.94
Reference CBI2501224A
Description
```html

CBI2501224A – Ultra-Compact DC-UPS with Modbus RTU

Main Features:

Input: 100-240-277 VAC / 140-340 VDC
Selectable Output: 12V 10A / 24V 10A
Two load outputs: 1 continuous, 1 dynamic (On/Off via Modbus)
Advanced battery management technology:

  • Diagnostics for SoC (state of charge) and SoH (state of health)
  • 5-stage charging algorithms: Recovery, Boost, Absorption, Float
  • Protection against short circuits, reverse polarity, and overvoltage
    Communication protocol: Modbus RTU RS485 for remote monitoring and control
    Easy installation: Push-in connectors and configuration via button
    Ultra-compact design: 50 mm width, ideal for electrical panels with limited space
    Protection degree: IP20, DIN rail mounting
```

The CBI2501224A is an intelligent DC-UPS that optimizes power management between the grid and battery, ensuring uninterrupted service continuity. With a width of only 50 mm, it offers a compact and highly efficient solution for industrial applications with limited space.

Thanks to the integration of the Modbus RTU RS485 protocol, it is possible to monitor in real-time the battery charge status, power parameters, and manage the dynamic load.

The device supports a wide range of batteries:

  • Lead (AGM, GEL, VRLA)
  • NiCd / NiMh
  • Lithium (Li-Ion, LiFePO4)

Advanced Battery Care functions allow for continuous diagnostics and automatic charge optimization to extend the operational life of the battery.



Main Technical Specifications

MODEL

CBI2501224A

Nominal Input Voltage Vac

100 - 240 - 277

Voltage Range Vac

85 - 305

Nominal Battery Voltage / Nominal Current

12 Vdc / 10A

24 Vdc / 10A

Efficiency

> 93%

Protections

Short circuit, OLP, OVP, OTP

Certifications

EN60950 / UL60950-1 and CSA C22.2 No. 60950-1-07 (Information Technology Equipment Safety Part1: Safety EN IEC 62368-1: 2014/AC:2015; EN54-4 Fire Detection and fire alarm systems; 89/336/EEC EMC Directive; 2014/35/UE (Low Voltage); DIN41773 (Charging cycle); Emission: IEC 61000-6-4; Immunity: IEC 61000-6-2. CE.

Operating Temperature

-25° - 80°C

Cooling

Self-cooling

Isolation Voltage

4000 Vac

Dimensions

65x115x135 mm

Weight

0.95 Kg

For purchases and samples

CONTACT US



Attachments

CBI2801224A Datasheet

CBI2801224A Datasheet

file_download Download (427.77KB)

Data sheet
Adelsystem
CBI2501224A
New
3 Items
Current Protection Type
Constant Current
Charger Type
DC UPS System Evoluto
Output Voltage VDC
12
24
Input Voltage VAC
100~277VAC
100~277VAC
Fault Signaling Type
Relay
PFC
Yes
Output Voltage Nr.
1
Input/Output Isolation
4000V
Battery Failure
Battery Failure Alarm
IP Protection Grade
IP20
Warranty
1 Year
Mechanical Mounting Format
Din Rail
Efficiency
93%
Output Current mA
10000
Output Current A
10
Input Connector
At Speed
Output Connection
At Speed
Isolation Class
Class 1
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Special Features
Battery Diagnostics, Multistage Charging, Fault Relay
Applications
Fire & Gas Protection
Security
Battery Voltage (Nominal) VDC
12
24
Input Voltage VAC (Nominal)
110
220
Product Family
CBI
