The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci

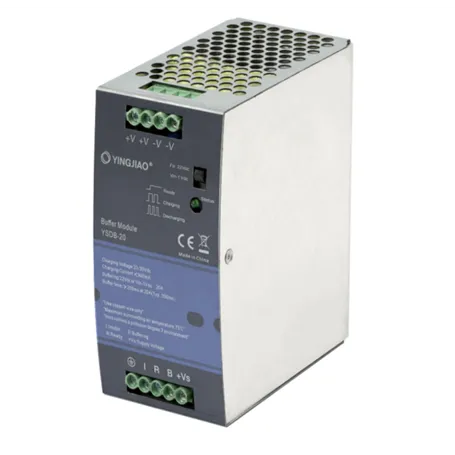

YSDB20 Yingjiao Din guide buffer module 20A 24V
Description
Yinjiao DIN Buffer Module Guide YSDB20-24
Features
- Use of electrolytic capacitors instead of lead batteries for buffering.
- Buffering time of type 350 ms at 22Vdc/20A.
- Selectable buffering mode via switch:
- Fixed mode at 22Vdc.
- Dynamic mode for Vin-1Vdc.
- LED indicator for signal status.
- Supports parallel connection to extend buffering time.
- Cooling through air convection.
The buffering module of Yingjiao is an additional device for regulated DC power supply at 24V. This buffering module uses maintenance-free electrolytic capacitors to store energy, thus eliminating the need for periodic replacements, unlike more expensive batteries that also have a shorter operating life.
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | YSDB20-24 |
|---|---|
| Working DC Voltage | 24V |
| Rated Output Current | 20A |
| Operating Temperature | -25 ~ +75℃ |
| Dimensions | 32x100x125mm |
| Certification | FCC, CE, UKCA |
| For purchases and samples | CONTACT US |
See also:
Download the Din Rail power supplies Catalogs in the attachments tab.
Data sheet
- Output Voltage VDC
- 24
- Operating Temperature
- -4°F / +158°F
- Rating
- 453
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 95%
- Dimensions
- 32x100x125mm
- Output Current mA
- 20000
- Output Current A
- 20
- Output Connection
- At Speed
- Certifications
- FCC
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UKCA - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220
