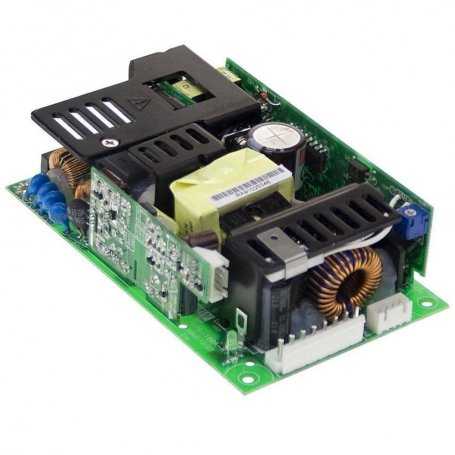

The product image may slightly differ as it is representative of the family and not the model.
RPS-160 - Power Supply Mean Well - Open 160W - Voltages 5V. 12V. 15V. 24V. 48V
Description
Power supply Mean Well series RPS-160, power 160Watt, output voltages 5V, 12V, 15V, 24V, 48V
The power supplies of the RPS-160 series by Mean Well are open frame power supplies and comply with international medical regulations 2xMOPP.
The power output is approximately 160W.
The entire product family of the RPS series is designed and certified for medical equipment, they comply with medical safety regulations and meet the BF insulation level (Body Floating).
The RPS-160 series complies with international medical regulations (2xMOPP) and EMC EN55011, perfectly adapting to all types of "patient contact" medical system equipment classified as BF.
Features
- Compact dimensions "5x3"
- Approved for medical safety (2xMOPP) according to ANSI / AAmi ES60601-1 and IEC / EN60601-1
- Suitable for BF applications
- 110W convection, 160W forced air
- Class EMI B for class I configuration
- Energy consumption in the absence of load less than 0.5 W via PS-ON control (model G)
- Standby output 5Vdc, power good, Power Fail; Remote sensing for 5-15V
- Protections: short circuit, overload, overvoltage, overtemperature
- Works up to 3000 meters of altitude
- 3 years warranty
- Dimensions: 127x76.2x34.6mm
Applications:
- Hemodialysis machine
- Medical computer monitors
- Sleep apnea devices
Our Rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | RPS-160-5 | RPS-160-12 | RPS-160-15 | RPS-160-24 | RPS-160-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 5V | 12V | 15V | 24V | 48V | |||||||||||||||||||||||
| Nominal output current | 30A | 12.9A | 10.3A | 6.5A | 3.25A | |||||||||||||||||||||||
| Nominal output power | 103W | 112.2W | 112.5W | 113.4W | 113.4W | |||||||||||||||||||||||
| Efficiency | 86% | 87% | 87% | 87% | 88% | |||||||||||||||||||||||
| Input voltage | 90~264VAC | |||||||||||||||||||||||||||
| Working temperature | -20 ~ +70 °C | |||||||||||||||||||||||||||
| PFC | NO | |||||||||||||||||||||||||||
| Dimensions | 127x76.2x34.6mm | |||||||||||||||||||||||||||
| Certification | CE, CB, EAC | |||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||
See also:
Download the power supply catalogs in the attached tab.
Discover more information on
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 5
12
15
24
48 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -4°F / +158°F
- Rating
- 453
- Power W
- 160
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Open Frame
- Efficiency
- 88%
- Dimensions
- 127x76.2x34.6mm
- Output Current mA
- 3250
6500
10300
12900
30000 - Output Current A
- 3.25
6.5
10.3
12.9
30 - Output Connection
- Connector
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Could you please provide more context or clarify what "RPS" stands for? It could have different meanings depending on the context.
