The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci

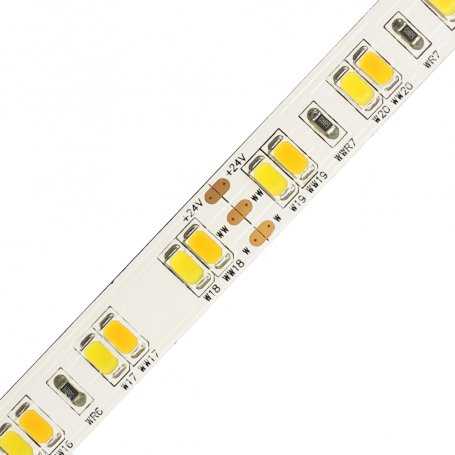

Led Strips SMD 5730 CCT - 120 leds/m - 25200 lumens 24V CRI90
Description
Code: P.5730.120.2490CCT
Flexible LED strip type 5730 - CRI90 - length 5 meters.
Equipped with 3M adhesive tape for fixing.
Available with IP20 protection rating.
Available CRI +90Ra | +95Ra
Technical Specifications:
| Dimensions | 5000x12mm |
| Power Consumption W | 30W/m |
| Voltage V | 24V |
| Operating Temp. | -20°C / +45°C |
| Humidity | 40% ~ 70% RH |
| MTBF | 25,000 hours |
| CCT | 1900~3500K< |
| Product Code | CCT | LED Type | S. D. | LEDs per meter | W/m | Power W | Lumen lm/m | Eff. LM/W | PCB width | Cutting length | CRI | CRI +90 | CRI +95 | |
| P.5730.120.2490CCT | 5.0 | 1900~3500K | 5730 | S | 120 | 30 | 150 | 5040 | 168 | 12mm | 5cm | 90 | Yes | optional |
Data sheet
- LED Type
- 5730CCT SMD
- Power Supply Type
- Constant Voltage / CV
- Input Voltage Volt
- 24
- Available Temperatures
- Dynamic White CCT
- Rating
- 5
- Power W
- 150
- Number of LEDs
- 120 LEDs/m
- Cutting Length
- 5 cm
- LED Line
- Single
- PCB Width
- 12mm
- Luminous Flux
- 25200 Lumen Max
- Efficiency LM/W
- 168 lm/w Max
- IRC (Italian Red Cross)
- Ra+90
- Other Optional CRI
- Ra+95
